Features:

• Three-phase bipolar drive (30 V, 3.5 A)
• Direct PWM drive
• Built-in low side inductive kickback absorbing diode
• Speed discriminator + PLL speed control
• Speed locked state detection output
• Built-in forward/reverse switching circuit
• Full complement of built-in protection circuits, including current limiter circuit, thermal protection circuit, and motor constraint protection circuit.

Pinout

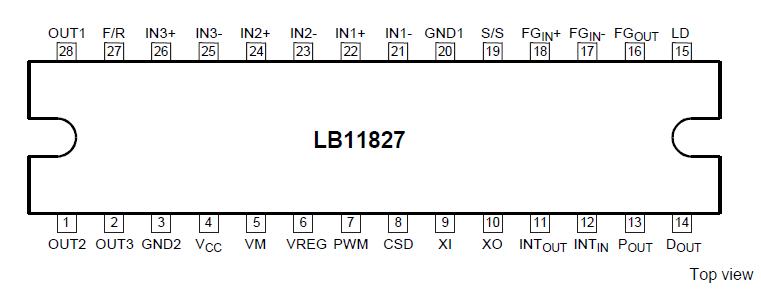

Connection Diagram

Specifications

Absolute maximum ratings
Vm min [V]	9.5
Vm max [V]	28
IO max [A]	3.5

Parameter	Symbol	Conditions	Ratings	Unit
Supply voltage range 1	V_CC		9.5 to 28	V
Regulator voltage output current	I_REG		0 to 30	mA
LD output current	I_LD		0 to 15	mA

Description

The LB11827 is a three-phase brushless motor driver that is optimal for driving drum and paper feed motors in laser printers and plain paper copiers. This IC adopts a direct PWM drive technique for minimal power loss. Flexible control of motor speed in response to an externally provided clock frequency (corresponding to the FG frequency) can be implemented by using the LB11827 in conjunction with the Sanyo LB11825M.
