Features:

• Three-phase bipolar drive
• Direct PWM drive
• Built-in FG amplifier and Schmitt comparator circuits
• Braking function (short-circuit braking)
• Built-in forward/reverse switching circuit
• Full complement of built-in protection circuits, including current limiter, undervoltage protection circuit, motor lockup protection circuit, and thermal protection circuit.
• Can be controlled by either a command voltage or the duty of an input PWM signal.

Pinout

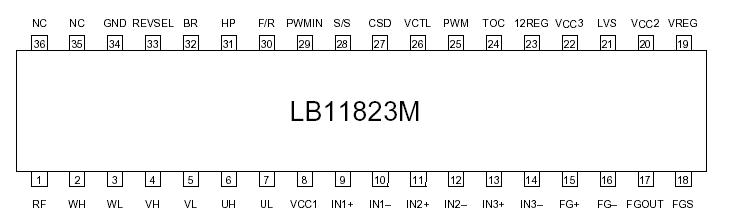

Connection Diagram

Specifications

Absolute maximum ratings
Vm min [V]	-
Vm max [V]	-
IO max [A]	0.04

Description

The LB11823M is a direct PWM drive predriver IC for use with three-phase power brushless motors. The LB11823M can implement a motor drive circuit with the desired output capacity (voltage and current) by using appropriate external transistors. Due to its built-in FG amplifier and other features, this device is optimal for motor drive in OA products that use power brushless motors.
