Description

Features:

• Soft phase switching + direct PWM drive
• PWM control based on both a DC voltage input (the CTL voltage) and a pulse input
• Provides a 5 V regulator output
• One Hall-effect sensor FG output
• Integrating amplifier
• Automatic recovery constraint protection circuit (on/off = 1/14), RD output
• Current limiter circuit
• LVSD circuit
• Thermal protection circuitt

Pinout

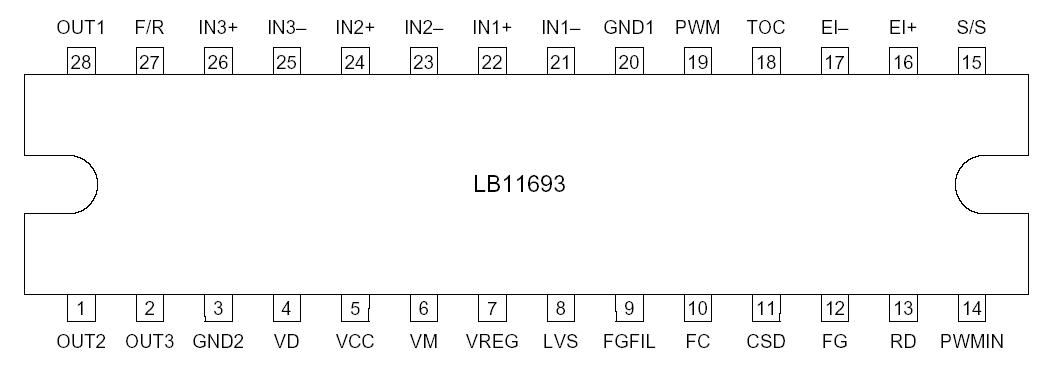

Connection Diagram

Specifications

Absolute maximum ratings
Vm min [V]	9.5
Vm max [V]	28
IO max [A]	1.8

Parameter	Symbol	Conditions	Ratings	Unit
Supply voltage range	V_CC		9.5 to 28	V
Constant voltage output current	IREG		0 to 30	mA
RD output current	IRD		0 to 10	mA
FG output current	IFG		0 to 10	mA

Description

The LB11693 reduces motor noise by imparting a slope to the output current when switching the phase to which power is applied. This motor driver includes an automatic recovery constraint protection circuit and is optimal for driving 24 V fan motors.
