Features:

• Three-phase bipolar PWM drive (high and low side n-channel FET drive)
• Maximum supply voltage: 45 V
• Gate drive voltage: about 10 V (high and low side n-channel FETs)
• Hall sensor signal F/V conversion circuit (one-shot multivibrator output)
• Synthesized three-phase Hall sensor signal output
• Built-in current limiter and undervoltage protection circuits

Pinout

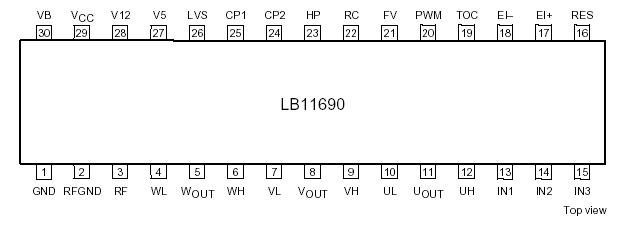

Connection Diagram

Specifications

Absolute maximum ratings
Vm min [V]	15
Vm max [V]	42
IO max [A]	0.04

Description

The LB11690 and LB11690H are three-phase bipolar PWM drive pre-driver ICs that allow the output circuits to be implemented using only n-channel FETs. These ICs can implement, at low cost, high-efficiency drive circuits in applications that use motors that require high drive currents. These ICs include a built-in Hall sensor signal F/V conversion circuit and can provide a voltage that is proportional to motor speed for use, for example, in speedometers for electric bicycles. These ICs also support use in applications that holds the speed controlled at a constant rate as the load varies.
