LAA127

Solid State Relays DPDT 2-Form-A relay

product image

LAA127 Picture
See larger image
SeekIC No. : 0091326 Detail

LAA127: Solid State Relays DPDT 2-Form-A relay

LAA127 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LAA127
Mfg:
Clare
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product Type : PCB Mount Mounting Style : Through Hole
Load Voltage Rating : 250 V Load Current Rating : 170 mA
Contact Form : 1 Form A (SPST-NO) Output Device : MOSFET
Package / Case : DIP-8

Description

Control Voltage Range :
Product Type : PCB Mount
Contact Form : 1 Form A (SPST-NO)
Output Device : MOSFET
Mounting Style : Through Hole
Package / Case : DIP-8
Load Voltage Rating : 250 V
Load Current Rating : 170 mA


Features:

• Small 8 Pin DIP Package
• Low Drive Power Requirements (TTL/CMOS Compatible)
• No Moving Parts
• High Reliability
• Arc-Free With No Snubbing Circuits
• 3750VRMS Input/Output Isolation
• FCC Compatible
• VDE Compatible
• No EMI/RFI Generation
• Machine Insertable, Wave Solderable
• Surface Mount and Tape & Reel Versions Available




Application

• Telecommunications
• Telecom Switching
• Tip/Ring Circuits
• Modem Switching (Laptop, Notebook, Pocket Size)
• Hookswitch
• Dial Pulsing
• Ground Start
• Ringer Injection
• Instrumentation
• Multiplexers
• Data Acquisition
• Electronic Switching
• I/O Subsystems
• Meters (Watt-Hour, Water, Gas)
• Medical Equipment-Patient/Equipment Isolation
• Security
• Aerospace
• Industrial Controls




Pinout

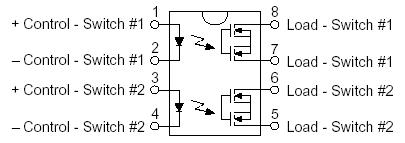

Connection Diagram




Specifications

Parameter Min Typ Max Units
Input Power Dissipation - - 1501 mW
Input Control Current
Peak (10ms)		 -
-		 -
-		 50
1		 mA
A
Reverse Input Voltage - - 5 V
Total Power Dissipation - - 8002 mW
Isolation Voltage
Input to Output		 3750 - - VRMS
Operational Temperature -40 - +85 °C
Storage Temperature -40 - +125 °C
Soldering Temperature
DIP Package
Flatpack/Surface Mount Pkg
(10 Seconds Max.)		 -
-		 -
-		 +260
+220		 °C
°C
1 Derate Linearly 1.33 mw/°C
2 Derate Linearly 6.67 mw/°C




Description

LAA127 is a 250V, 170mA, 10Ω 2-Form-A relay. It features enhanced load current capability and a very low onresistance. Current limiting version is available ("L" suffix, see specification for variations in performance).






Parameters:

Technical/Catalog InformationLAA127
VendorClare
CategoryRelays
Mounting TypeThrough Hole
Termination StylePC Pin
Package / Case8-DIP
CircuitDPST (2 Form A)
Load Current200mA
Voltage - Input1.2VDC
Voltage - Load0 ~ 250V
Output TypeAC, DC
On-State Resistance10 Ohm
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names LAA127
LAA127
CLA172 ND
CLA172ND
CLA172
