Product Details

Description



Features:

• Low power dissipation because of on-chip pump-up circuit.
• On-chip 50/60Hz vertical amplitude control circuit.
• On-chip ramp generator.
• On-chip driver circuit.
• Vertical output circuit.
• On-chip thermal protection circuit.
• Minimum number of external parts required.


Pinout

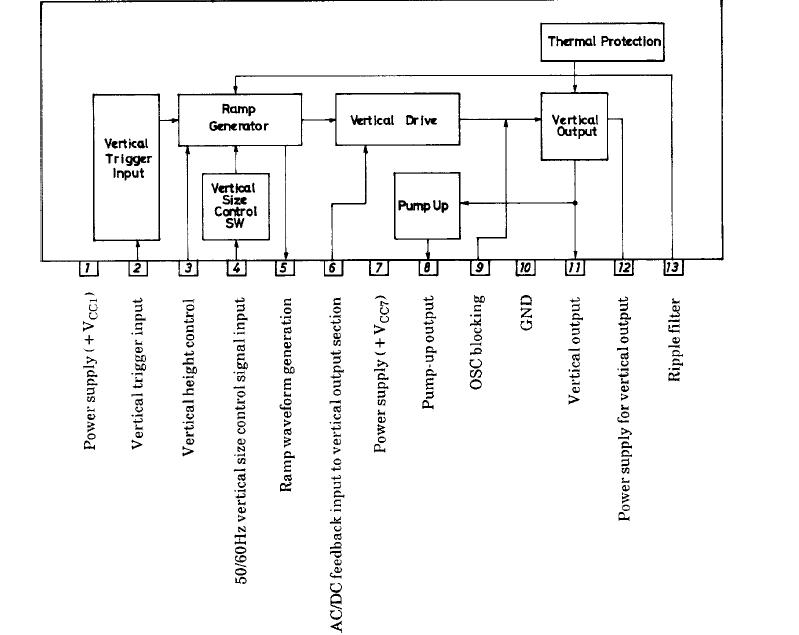

Connection Diagram


Specifications

cute 2009-02-26 18:39:37
Parameter Symbol Conditions Ratings Unit
Maximum supply voltage +VCC1max   15 V
Second pump-up supply voltage +VCC7max   30 V
Output block supply voltage +VCC12 max   62 V
Deflection output current IDEF   -1.5 to + 1.5 Ap-o
Allowable power dissipation Pd max With infinite heat sink 8 W
Operating temperature Topr   20 to +85
Storage Tstg   40 to +150
Thermal resistance j-c   4 /W



Description

The LA7836 is an IC that contains the vertical deflection output circuit with a driver for color, B/W TV sets, monitors, and display units with a large aperture (maximum deflection current 2.2Ap-p) and is placed in an SIP13H package.

The LA7836 features fewer external parts and low power dissipation. Since both DC feedback and AC feedback can be provided inside the IC, it is easy to design the vertical deflection circuit.

The LA7836 can be used in conjunction with single-chip IC LA7650 series (NTSC), LA7680 series (PAL/NTSC) (VIF, SIF, video, chroma, and deflection circuit) to provide all the functions required for color TV signal processing.
