Features:

·High output.
·Low power dissipation due to built-in pump-up circuit.
·Few external components needed.
·Thermal protection circuit built in.




Pinout

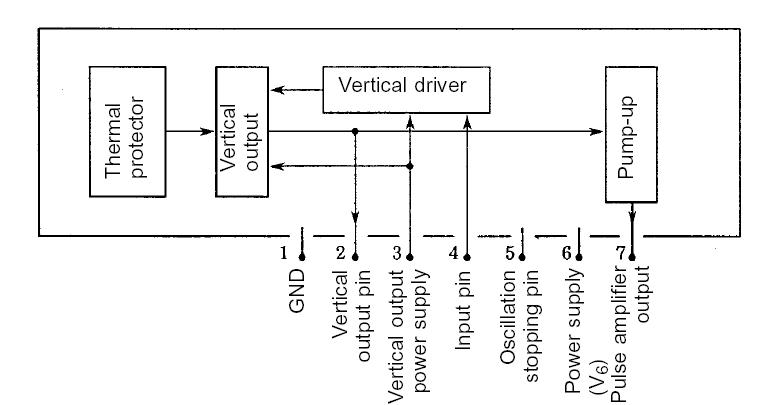

Connection Diagram




Specifications

Parameter Symbol Conditions Ratings Unit
Maximum supply voltage V6 max (Pump-up block) 30 V
V3 max (Output block) 62 V
Deflection output current I2 max ±1.5 Ap-o
Allowable power dissipation Pd max With arbitrarily large heat sink 8 W
Operating temperature Topr 20 to +85 °C
Storage temperature Tstg 40 to +150 °C
Thermal resistance qj-c 4 °C/W


Absolute maximum ratings
Recommended supply voltage
VCC [V]		 24





Description

The LA7832 is a monolithic linear IC for vertical deflection output for small and mid-sized color television sets that requires few external components and dissipates little power. When used in conjunction with the LA7620 series of video chroma deflection ICs, the LA7800 series of deflection ICs, and the LA7850 series of display ICs, it is possible to create a stable and compact vertical output deflection circuit.
