LA7790M

Features: • Maximum RF amplifier output level of +10 dBm (75 terminator), suitable for directly driving the cable.• RF output frequency range of 5 to 70 MHz. Frequency range selection function permits broadband designs.• Electronic volume control for direct-current control of RF ...

product image

LA7790M Picture
See larger image
SeekIC No. : 004390772 Detail

LA7790M: Features: • Maximum RF amplifier output level of +10 dBm (75 terminator), suitable for directly driving the cable.• RF output frequency range of 5 to 70 MHz. Frequency range selection fu...

LA7790M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LA7790M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Maximum RF amplifier output level of +10 dBm (75 terminator), suitable for directly driving the cable.
• RF output frequency range of 5 to 70 MHz. Frequency range selection function permits broadband designs.
• Electronic volume control for direct-current control of RF output level.
• Muting ensures ample attenuation during periods with no transmission.
• Support for both internal and external bias for I/Q modulation inputs.
• Support for I/Q modulation frequencies up to 10 MHz. (typ: 500 mVp-p)


Pinout

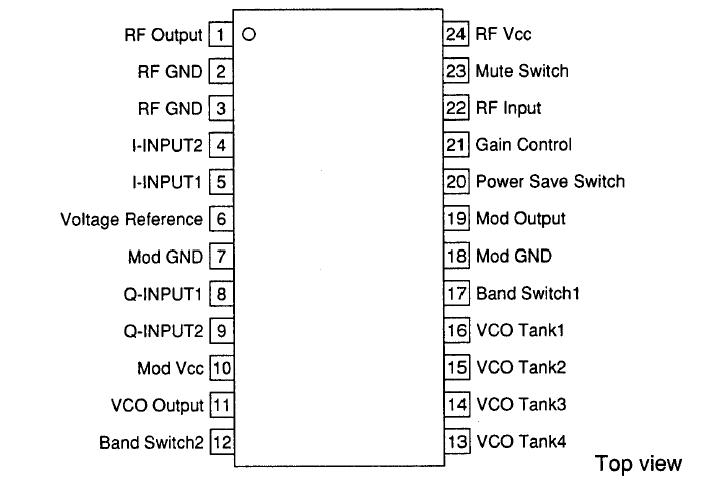

Connection Diagram


Specifications

Parameter Symbol Conditions Ratings Unit
Maximum supply voltage VCCmax Pins 1, 10, and 24 7 V
Circuit voltage V max Pins 1, 12, 17, 20, 21, and 23 VCC
Circuit current I11 Output lead-in current 1
I19 2
Allowable power dissipation Pdmax Ta 54°C 650 mW
Operating temperature Topr   20 to + 70 °C
Storage temperature Tstg   55 to + 150 °C



Description

The LA7790M is a QPSK data transmitter for digital cable TV applications. By integrating the I/Q quadrature modulator, RF amplifier, electronic volume control, mute control, and other functions onto a single chip, parts count is reduced and set size is miniaturized.
