Product Details

Description

Features:

• Both AFT and SIF inductors built in, thus making adjustment of external inductance unnecessary.
• Built-in buzz canceller for excellent audio performance.
• V_CC = 5 V, low power dissipation (250 mW)

Pinout

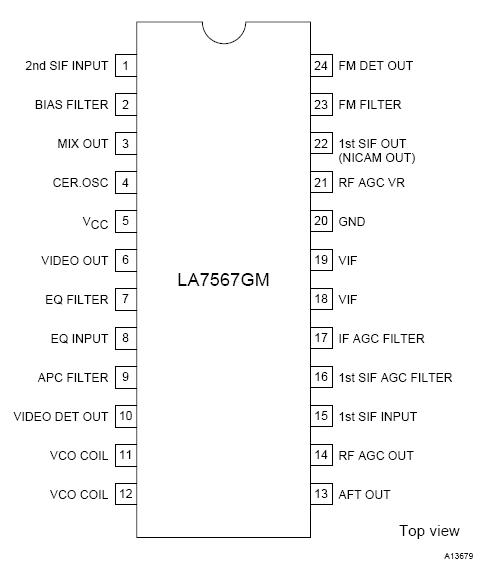

Connection Diagram

Specifications

Absolute maximum ratings
Recommended supply voltage VCC [V]	5

Parameter	Symbol	Conditions	Ratings	Unit
Maximum supply voltage	V_CC max		6	V
Circuit voltage	V13, V17		V_CC	V
Circuit current	I6		3	mA
	I10		10	mA
	I24		2	mA
Allowable power dissipation	Pd max	TA50°C, Independent IC ^*: Mounted on a printed circuit board	420	mW
Allowable power dissipation	Pd max		720	mW
Operating temperature	Topr		20 to +70	°C
Storage temperature	Tstg		55 to +150	°C

Description

The LA7567GM is an NTSC SPLIT support VIF/SIF IF IC that adopts a semi-adjustment-free system. The VIF block adopts a technique that makes AFT adjustment unnecessary by adjusting the VCO, thus simplifying the adjustment steps in the manufacturing process. PLL detection is adopted in the FM detector. A 5-V powersupply voltage is used to match that used in most multimedia systems. In addition, this IC also includes a buzz canceller to suppress Nyquist buzz and provide high audio quality.
