Product Details

Description

Features:

• Four BTL power amplifier channels and one H-bridge power amplifier channel
• I_Omax: 700 mA (each channel)
• Built-in level shifter circuits (BTL amplifiers)
• One muting circuit (output on/off control) system that operates for the BTL amplifiers
• Thermal shutdown circuit built in

Pinout

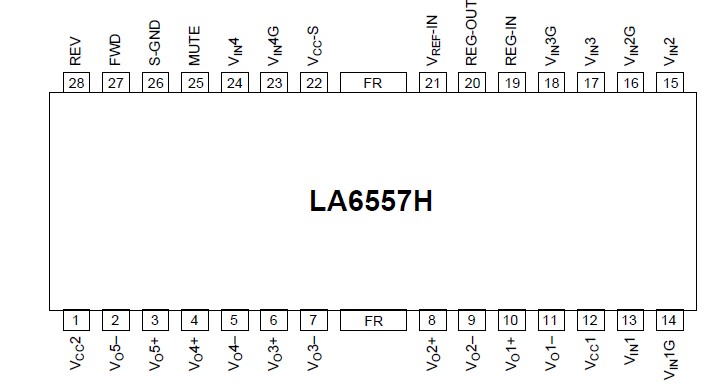

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Supply voltage	V_CCmax		14	V
Maximum output current	I_Omax		0.7	A
Maximum input voltage	V_INBmax		13	V
Mute pin voltage	V_MUTE		13	V
Allowable power dissipation	Pd max	Independent IC	0.82	W
Allowable power dissipation	Pd max	Mounted on the specified printed circuit board*	2.0	W
Operating temperature	Topr		30 to +85
Storage temperature	Tstg		55 to +150

Absolute maximum ratings
Vm min [V]	5.6
Vm max [V]	13
IO max [A]	0.7
