LA6545M

Features: • Bridge connected (BTL) four-channel power amplifier• VCE (residual voltage) minimized (channels 1 and 2) by using two power supplies.• IOmax: 1.0 A• Muting circuit provided (output on/off control) (MUTE pin: low for output off, high for output on. MUTE1: control...

product image

LA6545M Picture
See larger image
SeekIC No. : 004390560 Detail

LA6545M: Features: • Bridge connected (BTL) four-channel power amplifier• VCE (residual voltage) minimized (channels 1 and 2) by using two power supplies.• IOmax: 1.0 A• Muting circui...

LA6545M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LA6545M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Bridge connected (BTL) four-channel power amplifier
• VCE (residual voltage) minimized (channels 1 and 2) by using two power supplies.
• IOmax: 1.0 A
• Muting circuit provided (output on/off control) (MUTE pin: low for output off, high for output on. MUTE1: controls channels 1, 2, and 3, MUTE2: controls channel 4.)
• Thermal protection (shutdown) circuit
• Separated output stage power supply (VS1: channels 1 and 2, VS2: channels 3 and 4)




Pinout

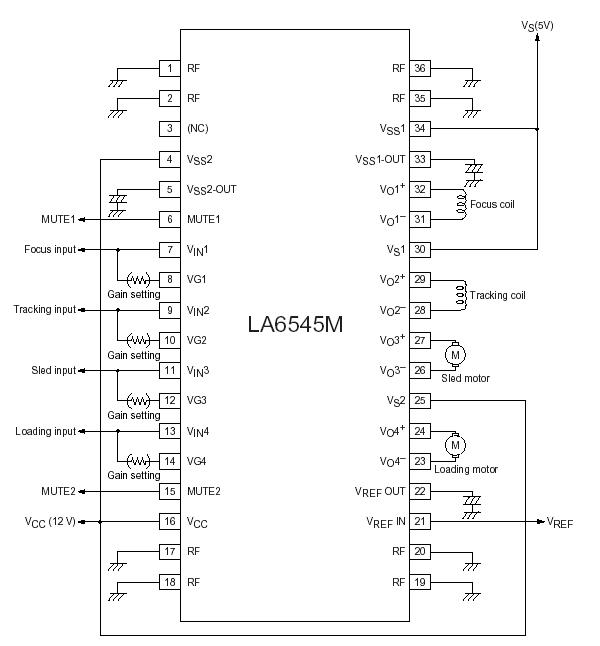

Connection Diagram


Specifications

Parameter Symbol Conditions Ratings Unit
Supply voltage VCC max VCCVS1, 2 14 V
Maximum supply voltage 2 VS max VS1, 2, VCCVS1, 2 14 V
Input voltage VIN max Each of the input pins VIN1 to VIN4 13 V
MUTE pin voltage VMUTE max   13 V
Allowable power dissipation Pdmax Independent IC 0.9 W
Mounted on the specified PCB (76.1 *114.3*1.6 mm3, glass epoxy) 2.1 W
Operating temperature Topr   -20 to +75
Storage temperature Tstg   -55 to +150



Description

The LA6545M is a 4-channel bridge (BTL) driver developed for use in CD-ROM systems.
