Features: • Bridge connected (BTL) four-channel power amplifier• VCE (residual voltage) minimized (channels 1 to 3) by using two power supplies.• IOmax: 1.0 A• Muting circuit provided (output on/off control) (MUTE pin: low for output off, high for output on. MUTE1: controls...

See larger image

SeekIC No. : 004390559 Detail

LA6544M: Features: • Bridge connected (BTL) four-channel power amplifier• VCE (residual voltage) minimized (channels 1 to 3) by using two power supplies.• IOmax: 1.0 A• Muting circuit...

LA6544M Data Sheet

Get Latest Price

Part Number:: LA6544M
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LA6500 evaluate
Features: ·High output current (Io max = 1.0 A) ·High gain ·With current limiter ·Capable of being...
LA6500-E evaluate
US $1.14 - 1.54 / Piece

Power Amplifiers POWER OP AMP
LA6502 evaluate
Specifications Absolute maximum ratingsVm min [V]4.5Vm max [V]13.8IO max [A]1

Product Details

Description

Features:

• Bridge connected (BTL) four-channel power amplifier
• V_CE (residual voltage) minimized (channels 1 to 3) by using two power supplies.
• I_Omax: 1.0 A
• Muting circuit provided (output on/off control) (MUTE pin: low for output off, high for output on. MUTE1: controls channel 1, MUTE2: controls channels 2, 3, and 4.)
• Thermal protection (shutdown) circuit
• Separated output stage power supply (VS1: channels 1, 2, and 3, VS2: channel 4)

Pinout

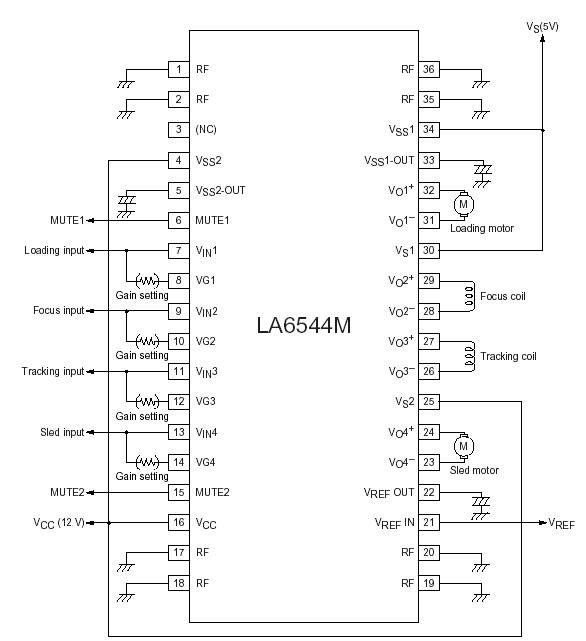

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Supply voltage	V_CC max	V_CCV_S1, 2	14	V
Maximum supply voltage 2	V_S max	V_S1, 2, V_CCV_S1, 2	14	V
Input voltage	V_INmax	Each of the input pins V_IN1 to V_IN4	13	V
MUTE pin voltage	V_MUTE max		13	V
Allowable power dissipation	Pdmax	Independent IC	0.9	W
Allowable power dissipation	Pdmax	Mounted on the specified PCB (76.1 114.31.6 mm³, glass epoxy)	2.1	W
Operating temperature	Topr		-20 to +75
Storage temperature	Tstg		-55 to +150

Description

The LA6544M is a 4-channel bridge (BTL) driver developed for use in CD-ROM systems.
