Features:

• 4-channel power amplifier with bridge circuit (BTL)
• IO max: 1A
• Integrated muting circuit (MUTE: Output OFF at Low, output ON at High. MUTE1 is for channel 1, and MUTE2 for channels 2, 3 and 4.)
• Integrated thermal shutdown circuit
• Divided output stage power supply (VS1: CH1, CH2, CH3; VS2: CH4)


Pinout

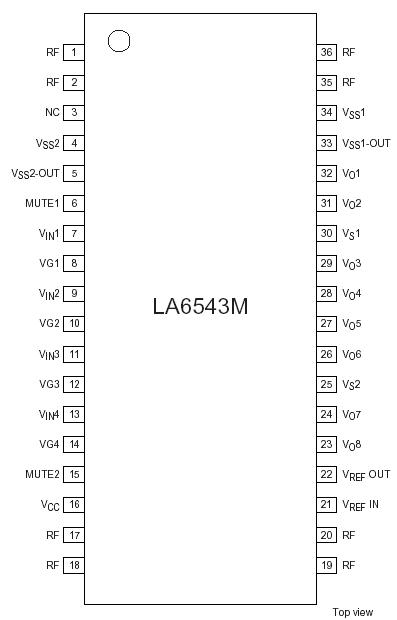

Connection Diagram


Specifications

Parameter Symbol Conditions Ratings Unit
Supply voltage VCCmax   14 V
Maximum supply voltage 2 VSmax VS1, 2 14 V
Maximum input voltage VSmax Input pins VIN1 to 4 13 V
Mute pin voltage VMUTEmax   13 V
Allowable power dissipation Pdmax IC only 0.9 W
Specified substrate Note 1 2.1
Operating temperature Topr   -20 to +75
Storage temperature Tstg   -55 to +150



Description

The LA6543M is a 4-channel bridge (BTL) driver developed for CD-ROM applications.
