Product Details

Description

Features:

·High output current (I_o max = 0.5 A)
·High gain
· Current limiter
·Wide operating supply voltage (±2 to ±18 V)
· Single supply operation possible (4 to 36 V)
·Mute circuit (active low)
·Thermal shutdown circuit built-in

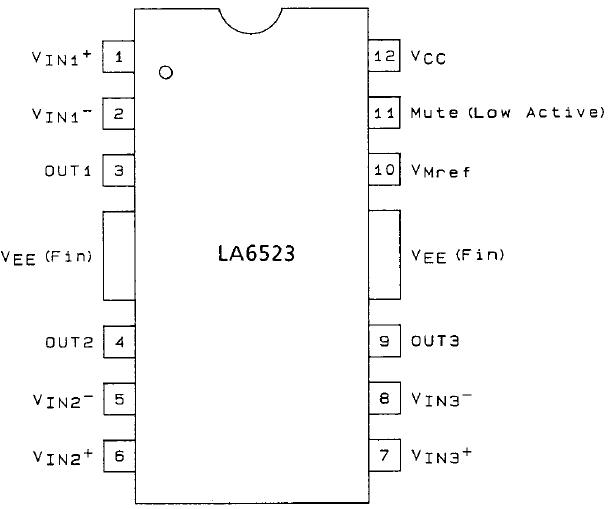

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Supply voltage	V_CC/V_EE		±18	V
Maximum supply voltage 2	V_ID		30	V
Input voltage	V_IN		±15	V
Allowable power dissipation	Pdmax		1.9	W
Operating temperature	Topr		-20 to +75
Storage temperature	Tstg		-55 to +150

Description

The LA6523 is a 3-output power operational amplifier IC developed for widespread use in consumer and industrial applications.
