LA6518M

Features: · High output current (IO max = 0.5 A)·High gain . Includes current limiter ·Wide operating voltage range (±2 to ±18 V)·Single power supply operation possible (4 to 36 V) Thermal shutdown function built inApplicationThe LA6518M is a 2-output power operational amplifier developed for use ...

product image

LA6518M Picture
See larger image
SeekIC No. : 004390539 Detail

LA6518M: Features: · High output current (IO max = 0.5 A)·High gain . Includes current limiter ·Wide operating voltage range (±2 to ±18 V)·Single power supply operation possible (4 to 36 V) Thermal shutdown ...

LA6518M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LA6518M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· High output current (IO max = 0.5 A)
·High gain . Includes current limiter
·Wide operating voltage range (±2 to ±18 V)
·Single power supply operation possible (4 to 36 V) Thermal shutdown function built in


Application

The LA6518M is a 2-output power operational amplifier developed for use in consumer and industrial equipment.


Pinout

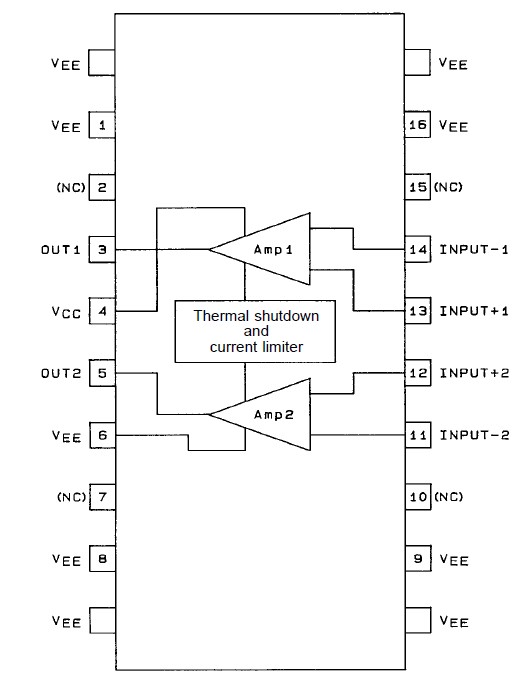

Connection Diagram


Specifications

Parameter
Symbol
 Conditions Ratings
Unit
Maximum supply voltage
VCC/VEE
   ±18
V
Differential input voltage
VID
   30
V
Common-mode input voltage
VIN
   ±15
V
Allowable power dissipation
Pd max
   0.7
W
Operating temperature
Topr
   20 to +75
Storage temperature
Tstg
   55 to +150



Description

The LA6518M is a 2-output power operational amplifier developed for use in consumer and industrial equipment.
