LA6503

Features: • CAV control spindle motor driver- Three-phase brushless motor driver- IOmax = 1 A- Built-in FG output circuit (single Hall detection output)- Reverse braking circuit- Built-in start/stop circuit- Upper side current detection for minimal loss in the current detection resistor. Als...

product image

LA6503 Picture
See larger image
SeekIC No. : 004390533 Detail

LA6503: Features: • CAV control spindle motor driver- Three-phase brushless motor driver- IOmax = 1 A- Built-in FG output circuit (single Hall detection output)- Reverse braking circuit- Built-in star...

LA6503 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LA6503
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• CAV control spindle motor driver
- Three-phase brushless motor driver
- IOmax = 1 A
- Built-in FG output circuit (single Hall detection output)
- Reverse braking circuit
- Built-in start/stop circuit
- Upper side current detection for minimal loss in the current detection resistor. Also, the voltage drop in this resistor reduces the IC internal power dissipation.
- Built-in thermal shutdown circuit
• Sled motor driver
- One built-in BTL driver channel
- IOmax = 1 A
- Wide dynamic range
- Built-in level shifting circuit
- Muting (output on/off) circuit
- Built-in thermal shutdown circuit
• Sled motion/position detection circuit
- Circuit that provides a pulse output corresponding to sled motion and position
- This circuit emits 96 pulses for each rotation from a 24-pole magnet and 90° phase difference Hall element motors, and thus detects the distance moved. It also provides two 48-pulse outputs with differing phases such that the motion direction can be detected from the phase difference between those signals.
• Hall bias power supply
- Generates the Hall element 3-V bias voltage.
- IOmax = 30 mA, typical


Pinout

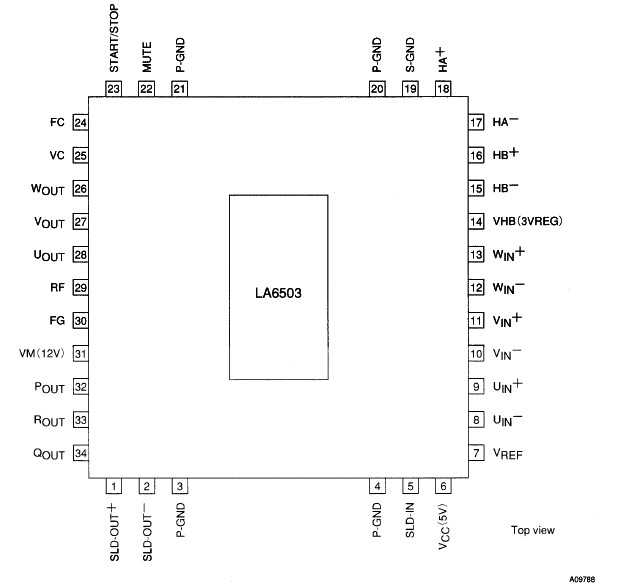

Connection Diagram


Specifications

Parameter
Symbol
 Conditions Ratings
Unit
Supply voltage
VCC max
   7
V
Supply voltage
VM max
   14
V
Input voltage
VC max
   VCC
V
Output current
IO max
 Spindle output, sled output 1
A
Allowable power dissipation
Pd max
 Independent IC 0.77
W
Operating temperature
Topr
   20 to +75
Storage temperature
Tstg
   55 to +150



Description

The LA6503 was developed for CAV control CD-ROM drives, and provides spindle motor driver, sled motor driver, and sled motion/position detection circuits.
