LA6462S

Features: ` Built-in phase compensation circuit (Gain 10 dB recommended)` Low noise: Equivalent input noise voltage 0.70 V typ (Rg = 2.2 k RIAA, DIN Audio). 0.50 V typ (Rg = 300 , IHF A) ` High speed: Slew rate 4.0 V/s typ. ` Wide band: Gain-bandwidth product 6 MHz typ.PinoutSpecifications P...

product image

LA6462S Picture
See larger image
SeekIC No. : 004390530 Detail

LA6462S: Features: ` Built-in phase compensation circuit (Gain 10 dB recommended)` Low noise: Equivalent input noise voltage 0.70 V typ (Rg = 2.2 k RIAA, DIN Audio). 0.50 V typ (Rg = 300 , IHF A) ` High spe...

LA6462S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LA6462S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Built-in phase compensation circuit (Gain 10 dB recommended)
` Low noise: Equivalent input noise voltage 0.70 V typ (Rg = 2.2 k RIAA, DIN Audio). 0.50 V typ (Rg = 300 , IHF A)
` High speed: Slew rate 4.0 V/s typ.
` Wide band: Gain-bandwidth product 6 MHz typ.

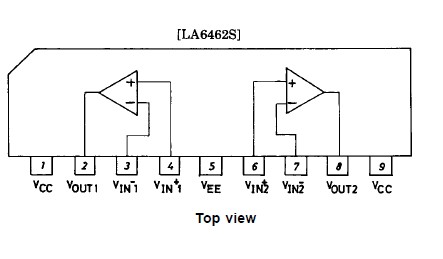

Pinout

Connection Diagram




Specifications

Parameter
Symbol
 Conditions Ratings
Unit
Maximum supply voltage
VCC/VEE
   ±18
V
Differential input voltage
VID
   ±30
V
Common-mode input voltage
VIN
   ±15
V
Allowable power dissipation
Pd max
 LA6462M 300
mW
LA6462S 500
mW
Operating temperature
Topr
   20 to +75
Storage temperature
Tstg
   40 to +125



Description

The LA6462S consists of two independent, internally phase compensated operational amplifiers. They feature low noise, high speed, wide band. Application areas include audio preamplifiers, active filters, and various electronic circuits.
