LA6242H

Features: • Four bridge-connected (BTL) power amplifier circuits• IO max: 1 A• Built-in level shifter circuits• Muting circuit (on/off control for all outputs)• High output voltage (dynamic range): 6.5 V (typical, channel 1 only)• Built-in input operational ampl...

product image

LA6242H Picture
See larger image
SeekIC No. : 004390501 Detail

LA6242H: Features: • Four bridge-connected (BTL) power amplifier circuits• IO max: 1 A• Built-in level shifter circuits• Muting circuit (on/off control for all outputs)• High ou...

LA6242H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LA6242H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Four bridge-connected (BTL) power amplifier circuits
• IO max: 1 A
• Built-in level shifter circuits
• Muting circuit (on/off control for all outputs)
• High output voltage (dynamic range): 6.5 V (typical, channel 1 only)
• Built-in input operational amplifier (channel 1 only)
• Channel 1 input operational amplifier switching function
• Built-in regulator that uses an external PNP transistor and is set by the value of an external resistor.




Pinout

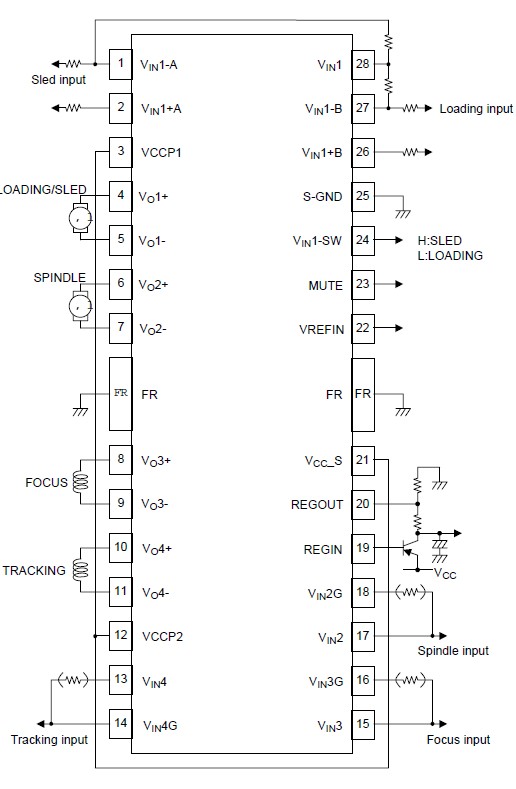

Connection Diagram




Specifications

Absolute maximum ratings
Maximum supply voltage [V] 14
Output current [A] 1


Parameter
Symbol
 Conditions Ratings
Unit
Supply voltage
VCC_S
 �*1 14
V
VCCP
 VCCP1, VCCP2 �*1 14
V
Allowable power dissipation
Pdmax
 Independent IC 0.8
W
Mounted on the specified PCB(114.3 *76.1 *1.6 mm, glass epoxy) 1.8
W
Maximum input voltage
VINB
 Each output 13
V
Maximum output current
IO max
 1
A
MUTE pin voltage
VMUTE
 �13
V
Operating temperature
Topr
 -30 to 􀀎85
Storage temperature
Tstg
 �-55 to 􀀎150
