Product Details

Description

Pinout

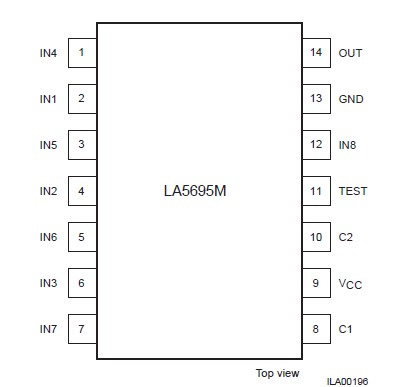

Connection Diagram

Specifications

Parameter	Symbol	Conditions	Ratings	Unit
Maximum supply voltage	V_CCmax		18	V
Maximum output current	I_C max		5	mA
Maximum input voltage	V_INmax		15	V
Allowable power dissipation	Pd max	Independent IC, Design guarantee value*	0.4	V
Operating temperature	Topr	Design guarantee value*	40 to +85	°C
Storage temperature	Tstg	Design guarantee value*	55 to +150	°C

Description

The LA5695M is a protection IC for heating/cooling and OA equipment.
