LA5693D

Features: • An external PNP transistor can be used to provide a lowsaturation oltage regulator.• Since the CK input has no edge detector, a high degree of lexibility is allowed in applications.• Variable detection voltage.• The watchdog time can be made longer.Application&#...

product image

LA5693D Picture
See larger image
SeekIC No. : 004390463 Detail

LA5693D: Features: • An external PNP transistor can be used to provide a lowsaturation oltage regulator.• Since the CK input has no edge detector, a high degree of lexibility is allowed in applic...

LA5693D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LA5693D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• An external PNP transistor can be used to provide a lowsaturation oltage regulator.
• Since the CK input has no edge detector, a high degree of lexibility is allowed in applications.
• Variable detection voltage.
• The watchdog time can be made longer.




Application

• Microcomputer system for car equipment, refrigeration/ heating equipment, office automation equipment.




Pinout

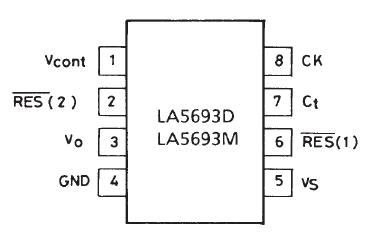

Connection Diagram




Specifications

Absolute maximum ratings
Input voltage [V] 41
Total power dissipation [W] 0.5
Electrical characteristics
Watchdog time typ (Ct=2µF) [ms] 40


Parameter
Symbol
 Conditions Ratings
Unit
Control pin voltage
VCONTmax
 1s 60
V
Control pin voltage
VCONTmax
 41
V
Control pin current
ICONTmax
 *VCC6V 11
mA
CK input voltage
VCKmax
 25
V
Reset pin voltage
VRES(1)max,VRES(2)max
 41
V
Allowable power dissipation
Pd max
 LA5693D, 5693S 500
mW
LA5693M 370
mW
Operating temperature
Topr
 40 to +85
Storage temperature
Tstg
 55 to +150
* : A PNP transistor is connected to the LA5693D, 5693S externally to provide a low-saturation voltage regulator.
Therefore, ICONT100mA will flow, as starting current, in the VCC range where the output cannot be regulated.





Description

The LA5693D is a single-chip voltage regulator for microcomputer system monitor use that performs the functions of 5V output voltage control, watchdog timer, and voltage detector. Since the LA5693D can hold the reset output, it is especially suited for use in peripheral control nd monitor output applications (example : valves used in efrigeration equipment, hot water supply system).
