LA5692S

Features: • An external PNP transistor can be used to provide a lowsaturation voltage regulator.• CK input with edge detector.• Variable detection voltage.• The watchdog time can be made longer.Application• Microcomputer system for car equipment, refrigeration/ heatin...

product image

LA5692S Picture
See larger image
SeekIC No. : 004390461 Detail

LA5692S: Features: • An external PNP transistor can be used to provide a lowsaturation voltage regulator.• CK input with edge detector.• Variable detection voltage.• The watchdog time...

LA5692S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LA5692S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• An external PNP transistor can be used to provide a lowsaturation voltage regulator.
• CK input with edge detector.
• Variable detection voltage.
• The watchdog time can be made longer.




Application

• Microcomputer system for car equipment, refrigeration/ heating equipment, office automation equipment.




Pinout

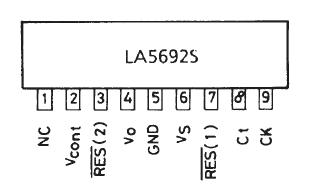

Connection Diagram




Specifications

Parameter Symbol Conditions Ratings Unit
Control pin voltage VCONTmax 1s 60 V
Control pin voltage VCONTmax 41 V
Control pin current ICONTmax *VCC6V 11 mA
CK input voltage VCKmax 25 V
Reset pin voltage VRES(1)max, VRES(2)max 41 V
Allowable power dissipation Pd max LA5692D, 5692S 500 mW
LA5692M 370 mW
Operating temperature Topr 40 to +85
Storage temperature Tstg 55 to +150

* : A PNP transistor is connected to the LA5692D, 5692S externally to provide a low-saturation voltage regulator.
Therefore, ICONT100mA will flow, as starting current, in the VCC range where the output cannot be regulated.




Description

The LA5692S is a single-chip voltage regulator for microcomputer system monitor use that performs the functions of 5V output voltage control, watchdog timer, and voltage detector. Since the LA5692S can hold the reset output, it is especially suited for use in peripheral control and monitor output applications (example : valves used in refrigeration equipment, hot water supply system).
