LA5645T

Features: • Operating supply voltage: 2.5 to 14 V• High-precision reference voltage: 1.5 V ±1.0%• PC pin current: 60 mA (max)• Current drain: 3 mA (max)• Input offset voltage: 2 mV (max)PinoutSpecifications Parameter Symbol Conditions Ratings Unit ...

product image

LA5645T Picture
See larger image
SeekIC No. : 004390446 Detail

LA5645T: Features: • Operating supply voltage: 2.5 to 14 V• High-precision reference voltage: 1.5 V ±1.0%• PC pin current: 60 mA (max)• Current drain: 3 mA (max)• Input offset v...

LA5645T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LA5645T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operating supply voltage: 2.5 to 14 V
• High-precision reference voltage: 1.5 V ±1.0%
• PC pin current: 60 mA (max)
• Current drain: 3 mA (max)
• Input offset voltage: 2 mV (max)


Pinout

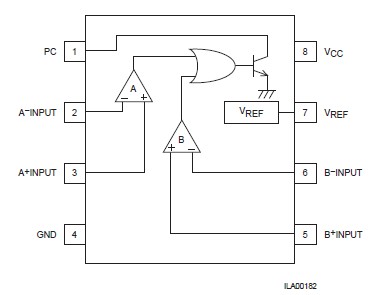

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Ratings
Unit
Supply voltage
VCC max
14.5
V
Differential input voltage
VID max
14.5
V
Allowable power dissipation
Pd max
200
mW
PC pin current
IPC max
Independent IC
370
mW
Mounted on the specified printed circuit board*
60
mA
Operating temperature
Topr
40 to +85
°C
Storage temperature
Tstg
50 to +150
°C



Description

The LA5645T is a constant-voltage/constant-current control IC that incorporates low-voltage operational amplifiers and a high-precision reference voltage circuit (VREF = 1.5 V ±1.0%). This device is optimal for use as a secondary side controller in battery chargers, switching egulators, and similar products.
