LA5632

Features: • Two built-in 3.3-V regulator circuits (IO = 60 mA, 150 mA)• Two built-in 5-V regulator circuits (IO = 1000 mA, 100 mA)• Power on/off detection circuit included• The reset circuit operates from the B.BAK voltage.• The reset circuit current drain is extremel...

product image

LA5632 Picture
See larger image
SeekIC No. : 004390442 Detail

LA5632: Features: • Two built-in 3.3-V regulator circuits (IO = 60 mA, 150 mA)• Two built-in 5-V regulator circuits (IO = 1000 mA, 100 mA)• Power on/off detection circuit included• T...

LA5632 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LA5632
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Two built-in 3.3-V regulator circuits (IO = 60 mA, 150 mA)
• Two built-in 5-V regulator circuits (IO = 1000 mA, 100 mA)
• Power on/off detection circuit included
• The reset circuit operates from the B.BAK voltage.
• The reset circuit current drain is extremely low (3.5 A (typical) in backup mode)

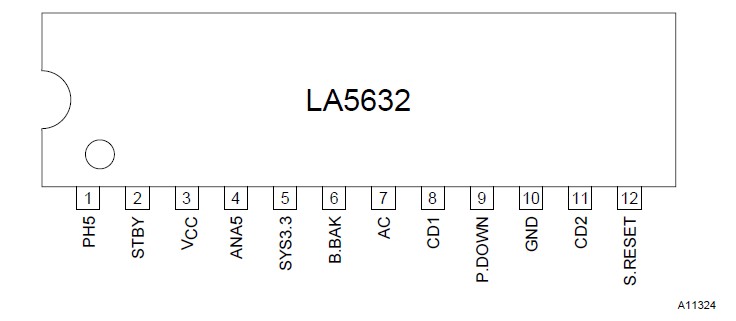

Pinout

Connection Diagram


Specifications

Parameter
Symbol
 Conditions Ratings
Unit
Input voltage VCC max   14
V
AC input voltage AC max   2
V
Allowable power dissipation
Pd max
 Independent IC 2.3
W
Operating temperature
Topr
   20 to +80
Storage temperature
Tstg
   55 to +150



Description

The LA5632 is a multiple power supply IC that provides two 3.3-V regulator circuits as well as two 5-V regulator circuits. This device is optimal for MD players and similar applications.
