Product Details

Description



Features:

• Two 3.3-V regulator circuits (IO = 40 mA, 150 mA)
• Two 5-V regulator circuits (IO = 1000 mA, 100 mA)
• Power on/off detection circuit
• Reset circuit


Pinout

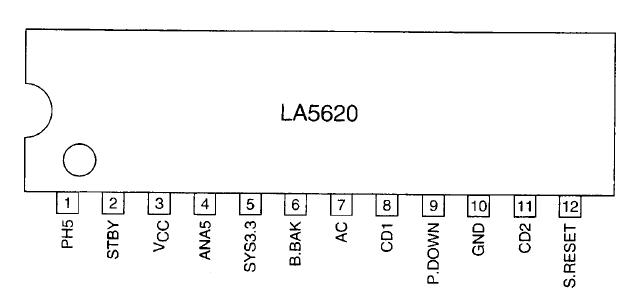

Connection Diagram


Specifications

Parameter
Symbol
 Conditions Ratings
Unit
Maximum output current VCC max   14
V
AC input voltage AC max   2
V
Allowable power dissipation
Pd max
 Independent IC 2.3
W
Operating temperature
Topr
   20 to +80
Storage temperature
Tstg
   55 to +150



Description

The LA5620 is a multi-system power supply regulator IC that includes four regulator circuits on chip: two 3.3-V regulator circuits and two 5-V regulator circuits. The LA5620 is optimal for use in audio and video systems that use a microcontroller, such as MD players and stereo components.
