LA5618

Features: • Power supply IC with ±7.5 V outputs (±1.5 A) and an on/off control function.• The LA5618 is pin compatible with the LA5617.PinoutSpecifications Parameter Symbol Conditions Ratings Unit Input voltage VCC/VEE max ±18 V Allowable power dissipation ...

product image

LA5618 Picture
See larger image
SeekIC No. : 004390436 Detail

LA5618: Features: • Power supply IC with ±7.5 V outputs (±1.5 A) and an on/off control function.• The LA5618 is pin compatible with the LA5617.PinoutSpecifications Parameter Symbol Cond...

LA5618 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LA5618
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Power supply IC with ±7.5 V outputs (±1.5 A) and an on/off control function.
• The LA5618 is pin compatible with the LA5617.

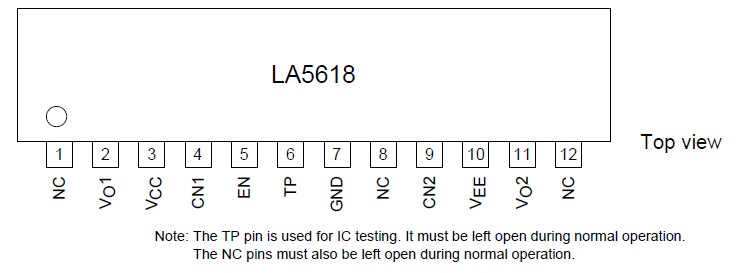

Pinout

Connection Diagram


Specifications

Parameter
Symbol
 Conditions Ratings
Unit
Input voltage VCC/VEE max   ±18
V
Allowable power dissipation
Pd max
 With no heat sink 2.4
W
Operating temperature
Topr
   20 to +85
Storage temperature
Tstg
   55 to +150



Description

The LA5618 is a multi-system power supply IC with a built-in on/off control function. It is optimal for use as the power supply IC in CD players, mini-component stereo systems, and other microcontroller controlled audio equipment.
