Product Details

Description



Features:

• The reset output delay time can be set with an external capacitor.
• Sharp-cutoff current limiter circuit and thermal protection circuit
• Active pull-up element incorporated in reset output circuit for improved noise suppression.

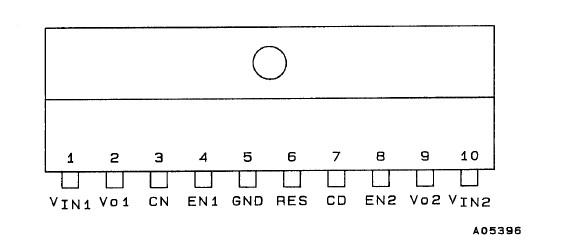

Pinout

Connection Diagram


Specifications

Parameter
Symbol
 Conditions Ratings
Unit
Input voltage
VIN max
   18
V
Enable pin voltage
VEN max
   VIN max
V
Reset output pin voltage
VRES max
   18
V
Allowable power dissipation
Pd max
   2
W
Operating temperature
Topr
   20 to +80
Storage temperature
Tstg
   55 to +150



Description

The LA5616 is appropriate for use in power supplies for microprocessor-controlled CD players, tuners, receivers, and similar audio equipment.
