LA5615M

Features: • Charge voltage can be switched between cycle charge and trickle charge (4.9 V typ. ® 4.6 V typ.).• Charge current limit can be set with an external resistor (125 mA typ.).• Built-in charge current detection circuit• Built-in battery voltage detection circuit...

product image

LA5615M Picture
See larger image
SeekIC No. : 004390433 Detail

LA5615M: Features: • Charge voltage can be switched between cycle charge and trickle charge (4.9 V typ. ® 4.6 V typ.).• Charge current limit can be set with an external resistor (125 mA typ.)...

LA5615M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LA5615M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Charge voltage can be switched between cycle charge and trickle charge (4.9 V typ. ® 4.6 V typ.).
• Charge current limit can be set with an external resistor (125 mA typ.).
• Built-in charge current detection circuit
• Built-in battery voltage detection circuit

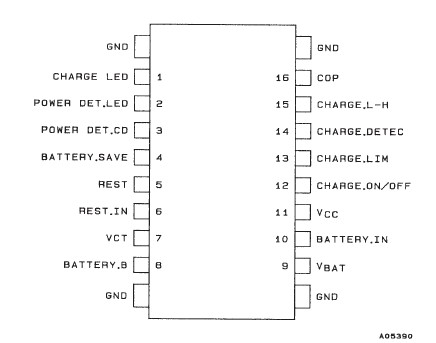

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Ratings
Unit
Supply voltage
VCC max
15
V
Battery pin voltage
VBatt max
6
V
Allowable power dissipation
Pd max
0.7
mW
Operating temperature
Topr
20 to +80
°C
Storage temperature
Tstg
30 to +125
°C



Description

The LA5615M is an IC that integrates a battery voltage detection and lead battery charger on a single chip that supports compact sets.
