LA2900M

Features: • High output level (5.3 V rms)• Low output noise voltage (12 V)• Low total harmonic distortion (0.003%)• High ripple rejection ratio (70 dB)• Excellent audio fidelityPinoutSpecifications Parameter Symbol Conditions Ratings Unit Maximum supply vo...

product image

LA2900M Picture
See larger image
SeekIC No. : 004390297 Detail

LA2900M: Features: • High output level (5.3 V rms)• Low output noise voltage (12 V)• Low total harmonic distortion (0.003%)• High ripple rejection ratio (70 dB)• Excellent audio...

LA2900M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LA2900M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High output level (5.3 V rms)
• Low output noise voltage (12 V)
• Low total harmonic distortion (0.003%)
• High ripple rejection ratio (70 dB)
• Excellent audio fidelity

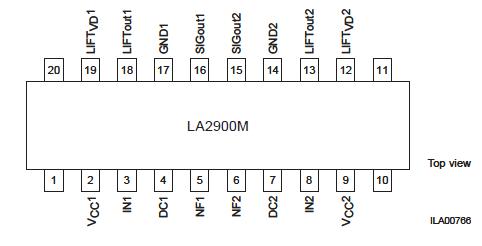

Pinout

Connection Diagram




Specifications

Parameter Symbol Conditions Ratings Unit
Maximum supply voltage VCC max With no input signal 12 V
Allowable power dissipation Pd max Ta85°C, Mounted on a printed circuit board
(114.3*76.1*1.6 mm3, glass epoxy)		 400 mW
Operating temperature Topr 40 to +85 °C
Storage temperature Tstg 40 to +150 °C


Absolute maximum ratings
Recommended supply voltage
VCC [V]		 9
ICCO [mA] 11
VG [dB] 8
VO [V] 5.3
VNO [µV] 12





Description

The LA2900M is a 2-channel high-output line amplifier IC developed for use in car audio systems. It can provide significant improvements in the signal-to-noise ratio when used to drive an external power amplifier due to its significantly increased output voltage as compared to that of earlier preamplifiers.

The high output of the LA2900M allows it to achieve a high signal-to-noise ratio and excellent fidelity in audio systems in which the main unit is connected to an external amplifier, and can improve the performance of the power amplifier in such systems.
