LA2284A

Features: *High gain rectifying amplifier included (Gv=26dB)*Low radiation noise when LED turns on*Logarithmic indicator for 5-dot LED of bar type*Constant current output(15mA)*Wide operating supply voltage*Not necessary diode or transistor for ALC*Minimum number of external parts requiredPinoutSp...

product image

LA2284A Picture
See larger image
SeekIC No. : 004390280 Detail

LA2284A: Features: *High gain rectifying amplifier included (Gv=26dB)*Low radiation noise when LED turns on*Logarithmic indicator for 5-dot LED of bar type*Constant current output(15mA)*Wide operating supply...

LA2284A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LA2284A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*High gain rectifying amplifier included (Gv=26dB)
*Low radiation noise when LED turns on
*Logarithmic indicator for 5-dot LED of bar type
*Constant current output(15mA)
*Wide operating supply voltage
*Not necessary diode or transistor for ALC
*Minimum number of external parts required


Pinout

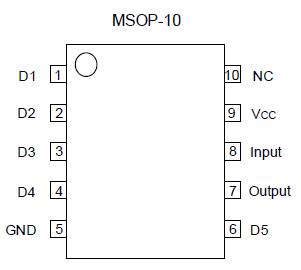

Connection Diagram


Specifications

PARAMETER SYMBOL RATINGS UNIT
Supply Voltage VCC 18 V
Amplifier input Voltage V8 -0.5 ~ VCC V
Pin 7 Voltage V7 6 V
D terminal Output Voltage VD 18 V
Power dissipation PD 1100 W
Operating Temperature TOPR -20 ~ +80 °C
Storage Temperature TSTG -40 ~ +125 °C



Description

The UTC LA2284A is a monolithic integrated circuit designed for 5-dot LED level meter drivers with a built-in rectifying amplifier. It is suitable for AC/DC level meters such as VU meters or signal meters.
