L9484

Linear Regulators - Standard Alternator Voltage Regulator

product image

L9484 Picture
See larger image
SeekIC No. : 00505245 Detail

L9484: Linear Regulators - Standard Alternator Voltage Regulator

L9484 Data Sheet

floor Price/Ceiling Price

US $ 2.17~2.84 / Piece | Get Latest Price
Part Number:
L9484
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~295
  • 295~500
  • 500~1000
  • 1000~2000
  • Unit Price
  • $2.84
  • $2.59
  • $2.26
  • $2.17
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description

Output Type :
Polarity :
Output Voltage :
Output Current :
Load Regulation :
Input Voltage MAX :
Line Regulation :
Maximum Operating Temperature :
Mounting Style :
Package / Case :


Features:

· FOR AIR AND LIQUID COOLED APPLICATIONS
· AMBIENT AIR TEMPERATURE (THERMISTOR) COMPENSATED
· SPECIAL DEFAULT COMPENSATION CURVE WITH TS-TERMINAL OPEN
· COMPENSATION CURVE WITH APPLICATION SPECIFIC RESISTOR ON TS
· THERMAL PROTECTION
· FIELD DRIVER, LAMP DRIVER, RELAY DRIVER, AND DF (FIELD MONITOR) SHORT CIRCUIT PROTECTED
· LOAD RESPONSE CONTROL
· SINGLE PHASE AUTOSTART


Pinout

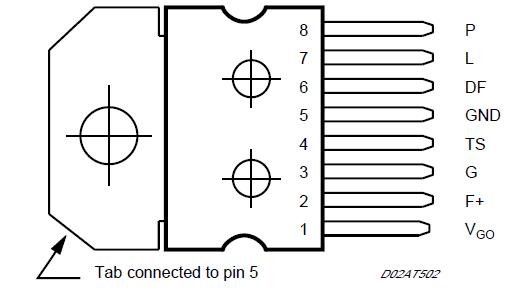

Connection Diagram


Specifications

Symbol Parameter Value Unit
  Output Current Capability INTERNALLY LIMITED A
  Power Dissipation 6 W
  Short Circuit Protected All Terminal, to VGO and
Ground



Description

The L9484 is a monolithic multifunction generator Voltage regulator intended for use in automotive charging applications. This All Silicon Voltage Regulator regulates the output of an automotive generator by controlling the field winding current by means of a variable frequency PWM high side driver.
