L9407F

Features: · FULLY MONOLITHIC DESIGN· LOW SIDE FIELD DRIVER· THERMAL PROTECTION· FIELD SHORT CIRCUIT PROTECTION· PROTECTED DIAGNOSTIC LAMP DRIVER· PROTECTED HIGH SIDE RELAY DRIVER· COMPLEX DIAGNOSTICS· LOAD RESPONSE CONTROL· DFM OUTPUT (FIELD MONITOR)PinoutSpecifications Symbol Parameter V...

product image

L9407F Picture
See larger image
SeekIC No. : 004389652 Detail

L9407F: Features: · FULLY MONOLITHIC DESIGN· LOW SIDE FIELD DRIVER· THERMAL PROTECTION· FIELD SHORT CIRCUIT PROTECTION· PROTECTED DIAGNOSTIC LAMP DRIVER· PROTECTED HIGH SIDE RELAY DRIVER· COMPLEX DIAGNOSTIC...

L9407F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L9407F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· FULLY MONOLITHIC DESIGN
· LOW SIDE FIELD DRIVER
· THERMAL PROTECTION
· FIELD SHORT CIRCUIT PROTECTION
· PROTECTED DIAGNOSTIC LAMP DRIVER
· PROTECTED HIGH SIDE RELAY DRIVER
· COMPLEX DIAGNOSTICS
· LOAD RESPONSE CONTROL
· DFM OUTPUT (FIELD MONITOR)

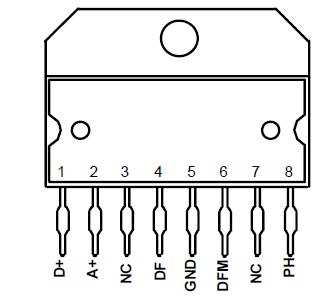

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
VS DC Supply Voltage (2 min. @ 25°C) [all pins vs. GND] 24 V
  Transient Supply Voltage (load dump) [see application circuit]
t<500ms		 40 V
  Transient Supply Voltage (low energy spikes) [see application
circuit] ISO7637-1 pulse 1,2,3 /ISO7637-3		 100 (clamped at 60 by
application)		 V
Tj Junction temperature range -40 to 170 °C
Tstg, Tcase Storage and case temperature range -40 to 150 °C
Ptot Total power Dissipation (@ Tcase = 150°C, Ifield = 5A) 8 W
  Reverse Voltage (see application diagram) @ 25°C, T = 15 sec
all pins, except for PH (normal working condition)		 -2.5 V
  DC Pin Current on DF, A+, GND (bonding limitation) 15 A
  ESD Voltage MILSTD883C (All pins vs.GND) ±4 KV



Description

The L9407F is a monolithic multifunction alternator voltage regulator intended for use in automotive application. L9407F includes the control section, the field power stage, fault diagnostic circuit which drives a warning lamp, and the protection against short circuits.
