L9362: Power Switch ICs - Power Distribution Quad Low Side

L9362 Data Sheet

US $ 3~4.35 / Piece | Get Latest Price

Part Number:: L9362
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
0~159
159~250
250~500
500~1000

Unit Price
$4.35
$3.77
$3.52
$3

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Number of Outputs :	4	On Resistance (Max) :	0.25 Ohms
Supply Current (Max) :	80 mA	Maximum Operating Temperature :	+ 150 C
Mounting Style :	SMD/SMT	Package / Case :	PowerSO-36

Description

On Time (Max) :
Off Time (Max) :
Operating Supply Voltage :
Mounting Style : SMD/SMT
Maximum Operating Temperature : + 150 C
Number of Outputs : 4
On Resistance (Max) : 0.25 Ohms
Supply Current (Max) : 80 mA
Package / Case : PowerSO-36

Features:

· QUAD LOW-SIDE DRIVER FOR AUTOMOTIVE APPLICATION
· CURRENT FEEDBACK OUTPUT FOR EACH POWER STAGE
· 5V SUPPLY VOLTAGE
· INTERNAL FAILURE DIAGNOSTIC
· OUTPUT VOLTAGE SLOPE CONTROL FOR LOW ELECTRO MAGNETIC EMISSIONS
· INTERNAL SHORT CIRCUIT PROTECTION
· OVERTEMPERATURE PROTECTION AND OVERCURRENT PROTECTION AND DISABLE
· SWITCHING FREQUENCY UP TO 2kHZ
· INTERNAL ZENER CLAMP OF THE OUTPUT VOLTAGE FOR INDUCTIVE LOADS
· PARALLEL INPUT
· SPI FOR DIAGNOSTIC INFORMATION EXCHANGE
· RESET INPUT
· TYPICAL INTERNAL OSCILLATOR FREQUENCY 325kHZ

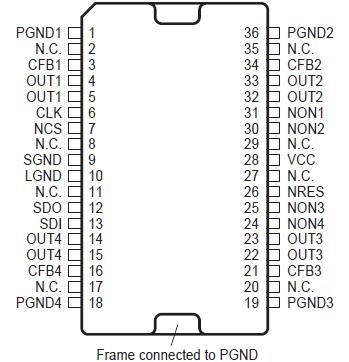

Pinout

Connection Diagram

Specifications

For externally applied voltages or currents exceeding these limits damage of the circuit may occur

Symbol	Parameter	Test Conditions	Min.	Typ.	Max.	Unit
Supply Voltages
V_CC	Supply voltage		-0.3		7	V
Outputs (Out 1 ... 4)
V_Out	Continues output voltage	With no reverse current.	-0.3		45	V
I_outc	Continues current				3.0	A
I_SCBpeak	Peak output current		-10		I_SCB	A
W_OFF	Clamped energy at the switching OFF	For 2ms, see fig. 8			50	mJ
Inputs (NONx; NCS; CLK; NRES; SDI)
V_IN	Input voltage		-0.3		7	V
Outputs (SDO; CFB)
V_OUT	Output voltage		-0.3		V_CC+0.3	V
Operating junction temperature
T_j	Operating junction temperature		-40		150	°C

Note: The maximum ratings may not be exceeded under any circumstances, not even momentarily and individually, as permanent damage to the IC will result.

Description

The L9362 is an integrated quad low-side power switch with power limitation, load interrupt and shorted load detection, thermal shutdown, error detection via SPI interface and integrated Z-diodes for output clamping, free running diodes.

Parameters:

Technical/Catalog Information	L9362
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	PowerSO-36 Exposed Bottom Pad
Mounting Type	Surface Mount
Type	Low Side
Voltage - Supply	4.5 V ~ 5.5 V
On-State Resistance	250 mOhm
Current - Output / Channel	3A
Current - Peak Output	5A
Packaging	Tube
Input Type	Serial
Number of Outputs	4
Operating Temperature	-40°C ~ 125°C
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L9362 L9362
