Features:

` L9352B Quad low-side switch
` 2 x 5A designed as conventional switch
` 2 x 2.5A designed as switched current-regulator
` Low ON-resistance 4 x 0.2 (typ.)
` Power SO-36 - package with integrated cooling area
` Integrated free-wheeling and clamping Z-diodes
` Output slope control
` Short circuit protection
` Selective overtemperature shutdown
` Open load detection
` Ground and supply loss detection
` External clock control
` Recirculation control
` Regulator drift detection
` Regulator error control
` Regulator resolution 5mA
` Status monitoring
` Status push-pull stages
` Electrostatic discharge (ESD) protection


Pinout

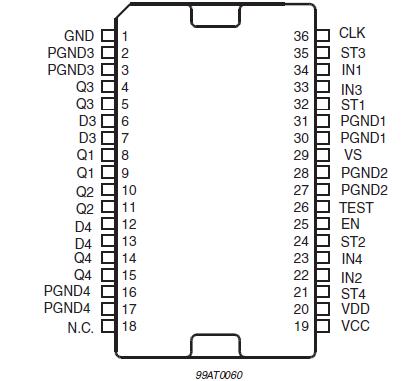

Connection Diagram


Specifications

The absolute maximum ratings are the limiting values for this device. Damage may occur if this device is subjected
to conditions which are beyond these values.
Symbol Parameter Test Conditions Min Typ Max Unit
EQ Switch off energy for inductive loads       50 mJ
Voltages
VS Supply voltage   -0.3   40 V
VCC, VDD Supply voltage   -0.3   6 V
VQ Output voltage static       40 V
VQ Output voltage during clamping t < 1ms     60 V
VIN, VEN Input voltage IN1 to IN4, EN II < |10|mA -1.5   6 V
VCLK Input Voltage CLK



 -1.5   6 V
VST Output voltage status   -0.3   6 V
VD Recirculation circuits D3, D4       40 V
VDRmax max. reverse breakdown voltage of free
wheeling diodes D3, D4		       55 V
Currents
IQ1/2 Output current for Q1 and Q2   >5   internal
limited		 A
IQ3/4 Output current for Q3 and Q4   >3   internal
limited		 A
IQ1/2,
IPGND1/2		 Output current at reversal supply for Q1
and Q2		   -4     A
IQ3/4,
IPGND3/4		 Output current at reversal supply for
Q3 and Q4		   -2     A
IST Output current status pin   -5   5 mA
ESD Protection
ESD Electrostatical Discharging
GND, PGND, Qx, Dx, CLK, ST, IN,
TEST, EN		 MIL883C ±2     kV
VS,
VCC,VDD		 Supply pins vs. GND and PGND ±1     kV
ESD Output Pins (Qx, Dx) vs. Common GND
(PGND1-4 + GND)		 ±4     kV



Description

The L9352B is an integrated quad low-side power switch to drive inductive loads like valves used in ABS systems. Two of the four channels are current regulators with current range from 0mA to 2.25A..

All channels are protected against fail functions. L9352B are monitored by a status output.
