L8202

Features: ` Flexible Motor Driver configuration 4 DC Motor drivers (1.5A Peak Current) or 2 DC Motor drivers & 1 Dual Full Bridge Stepper Motor driver` 2 Switching Voltage regulators` 6 Open Drain Drivers` Serial Input Port` 4 Operational amplifiers` Low voltage Supervisor` Thermal Protectio...

product image

L8202 Picture
See larger image
SeekIC No. : 004389571 Detail

L8202: Features: ` Flexible Motor Driver configuration 4 DC Motor drivers (1.5A Peak Current) or 2 DC Motor drivers & 1 Dual Full Bridge Stepper Motor driver` 2 Switching Voltage regulators` 6 Open D...

L8202 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L8202
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Flexible Motor Driver configuration
    4 DC Motor drivers (1.5A Peak Current) or
    2 DC Motor drivers & 1 Dual Full Bridge Stepper Motor driver
` 2 Switching Voltage regulators
` 6 Open Drain Drivers
` Serial Input Port
` 4 Operational amplifiers
` Low voltage Supervisor
` Thermal Protection


Pinout

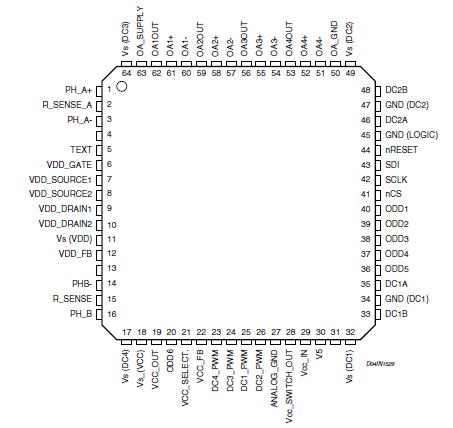

Connection Diagram


Specifications

Symbol Parameter Value Unit
Vs Supply voltage, including ripple 44 V
VOD Differential Voltage between Power pins, Supply pins and Ground 44 V
Vcc_IN,Vcc_FB VCC 7 V
VDD Max VDD Voltage (@IVDD = 0.0A) 17 V
IVDD VDD Output current 3 A
VCCOpAmp Op Amp Supply Voltage 7 V
VDIFF OpAmp Op Amp Differential Voltage 7 V
Vmaxrst* Maximum voltage on nRESET Vcc_in V
Tj Junction Temperature 150 °C
Tstg Storage Temperature -55 to 150 °C



Description

L8202 is a multifunction analog ASIC designed for MFP Inkjet printer applications.

L8202 integrates 4 full H Bridge drivers, 2 switching Buck type voltage regulators, 4 operational amplifiers, 6 open drain drivers, Reset Generation circuitry and over temperature protection circuitry.
