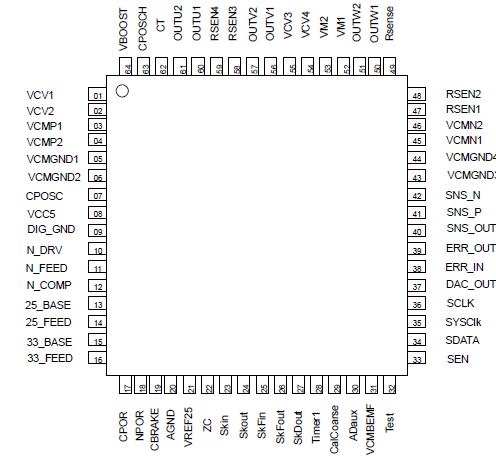

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
	VCV1,VCV2,VCV3,VCV4	14	V
	VCC5 maximum voltage	6	V
	OUTU1,OUTU2,OUTV1,OUTV2,OUTW1,OUTW2 VCMP1,VCMP2,VCMN1,VCMN2 VM1,VM2	-1V to 16	V
	Digital Input Voltage	-0.3 to VCC5	V
	Operating free-air temperature	0 to 70	°C
	Storage Temperature	-55 to 150	°C

Description

L7250 is a power IC for driving the SPINDLE and VCM motors, suitable for 5V & 12V application. The spindle system includes integrated power FETs which are driven using ST's Smoothdrive pseudo-sinusoidal commutation technology. The voice coil motor (VCM) system includes integrated power FETs, as well as ramp load and unload capability. Linear 3.3V and1.8V voltage regulators are included, as well as a negative regulator.

Power monitoring of VCC5, VCC12, and of the two positive voltage regulators is also included.L7250 uses a 3 wire serial interface: S_DATA, S_CLK and S_ENABLE
