L6920

Features: ` 0.6 TO 5.5V OPERATING INPUT VOLTAGE` 1V START UP INPUT VOLTAGE` INTERNAL SYNCHRONOUS RECTIFIER` ZERO SHUT DOWN CURRENT` 3.3V AND 5V FIXED OR ADJUSTABLE OUTPUT VOLTAGE (2V UP TO 5.2V)` 120m INTERNAL ACTIVE SWITCH` LOW BATTERY VOLTAGE DETECTION` REVERSE BATTERY PROTECTIONApplication· ONE...

product image

L6920 Picture
See larger image
SeekIC No. : 004389320 Detail

L6920: Features: ` 0.6 TO 5.5V OPERATING INPUT VOLTAGE` 1V START UP INPUT VOLTAGE` INTERNAL SYNCHRONOUS RECTIFIER` ZERO SHUT DOWN CURRENT` 3.3V AND 5V FIXED OR ADJUSTABLE OUTPUT VOLTAGE (2V UP TO 5.2V)` 12...

L6920 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L6920
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 0.6 TO 5.5V OPERATING INPUT VOLTAGE
` 1V START UP INPUT VOLTAGE
` INTERNAL SYNCHRONOUS RECTIFIER
` ZERO SHUT DOWN CURRENT
` 3.3V AND 5V FIXED OR ADJUSTABLE OUTPUT VOLTAGE (2V UP TO 5.2V)
` 120m INTERNAL ACTIVE SWITCH
` LOW BATTERY VOLTAGE DETECTION
` REVERSE BATTERY PROTECTION


Application

· ONE TO THREE CELL BATTERY DEVICES
· PDA AND HAND HELD INSTRUMENTS
· CELLULAR PHONES - DIGITAL CORDLESS PHONE
· PAGERS
· GPS
· DIGITAL CAMERAS


Pinout

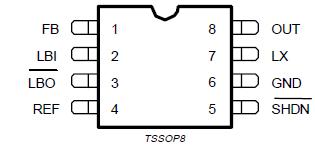

Connection Diagram


Specifications

Symbol Parameter Value Unit
Vccmax Vcc to GND 6 V
  LBI, SHDN, FB to GND 6 V
Vout max Vout to GND 6 V



Description

The L6920 is a high efficiency step-up controller requiring only three external components to realize the conversion from the battery voltage to the selected output voltage.

The start up is guaranteed at 1V and the L6920 is operating down to 0.6V.

Internal synchronous rectifier of the Internal synchronous rectifier is implemented with a 120m P-channel MOSFET and, in order to improve the efficiency, a variable frequency control is implemented.
