Product Details

Description



Pinout

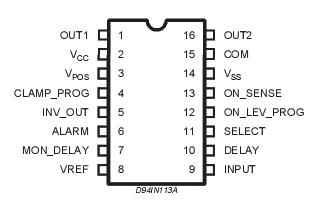

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC SupplyVoltage referred to COM pin 20 V
VSS Negative Supply Voltage referred to COM pin 8 to 0 V
VPOS-VOUT1 Collector-EmitterVoltage of High SideNPN 25 V
VOUT2 -VSS Drain-Source Voltage of Low Side DMOS 25 V
VEXT1 Externally Forced Voltage (pin9) -0.3to VCC V
VEXT2 Externally Forced Voltage (pins4,7,10,11, 12) -0.3to 7 V
IDELAY Sink Current pinDelay 3 mA
IMON_DELAY Sink Current PinMon_Delay 3 mA
VON_SENSE Voltage on ON_SENSEPin VSS-0.3to VCC V
IOUT1 Positive Output Current(tp 1ms) (peak) 8 A
IOUT2 Negative Output Current(tp 1ms) (peak) 8 A
IINV_OUT Output Current in INV_OUT Pin ±20 mA
IALARM Output Current in ALARM Pin ±20 mA
Ptot TotalPower Dissipation internallylimited
Tamb Operating TemperatureRange -25 to +85 °C
Tstg Storage Temperature -50to +150 °C



Description

The L6353 device is a smart driver, with all the driveandprotectionknow-how"onboard".

Available in both DIP and SO package,L6353 can be triggeredwithalogiclevelorwiththesignalfroman optocouplerora pulsetransformer.Itfiltersparasitic inputsignalsand drivesany MOSor IGBT.
