L6242

PinoutSpecifications Symbol Parameter Value Unit VS Supply Voltage 28 V Vi Input Voltage VS V Vi Differential Input Voltage ±VS V IO DC Output Current 1 A IP Peak Output Current (non repetitive) 1.5 A Ptot Maximum ...

product image

L6242 Picture
See larger image
SeekIC No. : 004389255 Detail

L6242: PinoutSpecifications Symbol Parameter Value Unit VS Supply Voltage 28 V Vi Input Voltage VS V Vi Differential Input Voltage ±VS V IO DC Ou...

L6242 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L6242
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

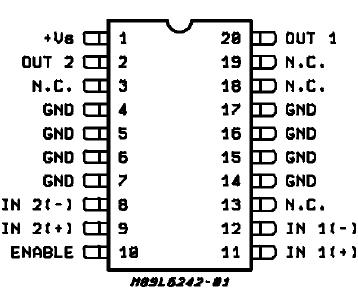

Connection Diagram




Specifications

Symbol
Parameter
Value
Unit
VS
 Supply Voltage
28
V
Vi
 Input Voltage
VS
V
Vi
 Differential Input Voltage
±VS
V
IO
 DC Output Current
1
A
IP
 Peak Output Current (non repetitive)
1.5
A
Ptot
 Maximum Power Dissipation at Tamb = 85°C
TCASE = 75°C
1
5
W
W
Tstg, TJ
 Storage and Junction Temperature Range
-40 to 150
°C



Description

The L6242 is a monolithic integratedcircuit in SO-20 ackage intended for use as a dual power operational mplifier. It is particularly indicated for driving nductive loads as linear motor, and finds application n Hard Disc, Compact-Disc, etc.

The two power operational amplifiers are controlled y a common enable input.

The high gain and output power capability L6242 provide uperior performance whatever a power booster s required.
