L6238S

Features: ·12V OPERATION·3A, THREE-PHASE DMOS OUTPUT TOTAL Rdson 0.52W)·O HALL SENSORS REQUIRED·DIGITAL BEMF PROCESSING·LINEAR OR PWM CONTROL·STAND ALONE OR EXT. DRIVER·SHOOT-THROUGH PROTECTION·THERMAL SHUTDOWNPinoutSpecifications Symbol Parameter Value Unit BVdss Output Brakdo...

product image

L6238S Picture
See larger image
SeekIC No. : 004389254 Detail

L6238S: Features: ·12V OPERATION·3A, THREE-PHASE DMOS OUTPUT TOTAL Rdson 0.52W)·O HALL SENSORS REQUIRED·DIGITAL BEMF PROCESSING·LINEAR OR PWM CONTROL·STAND ALONE OR EXT. DRIVER·SHOOT-THROUGH PROTECTION·THER...

L6238S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L6238S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·12V OPERATION
·3A, THREE-PHASE DMOS OUTPUT TOTAL Rdson 0.52W)
·O HALL SENSORS REQUIRED
·DIGITAL BEMF PROCESSING
·LINEAR OR PWM CONTROL
·STAND ALONE OR EXT. DRIVER
·SHOOT-THROUGH PROTECTION
·THERMAL SHUTDOWN


Pinout

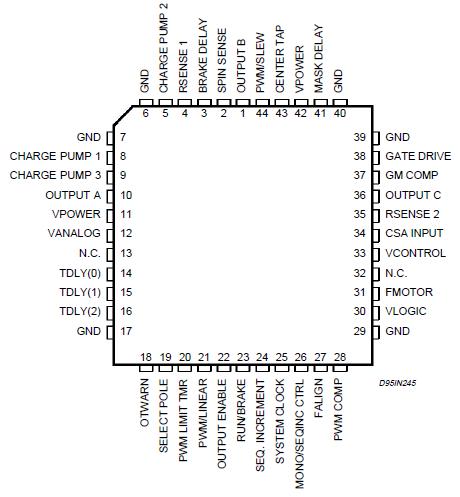

Connection Diagram


Specifications

Symbol
 Parameter
Value
Unit
BVdss
 Output Brakdown Voltage
17
V
VPower
 Motor Supply Voltage
15
V
VLogic
 Logic Supply Voltage
7
V
VAnalog
 Analog Supply Voltage
15
V
Vin
 Input Voltage
-0.3 to 7
V
Cstorage
 Charge Pump Storage Capacitor
4.7
F
Imdc
 Motor Current (DC) (TQFP64 only)
(PLCC44 and PQFP44)
3
2.5
A
A
Impk
 Peak Motor Current (Pulsed: Ton = 5ms, d.c. = 10%)
5
A
Ptot
 Power Dissipation at Tamb = 50 °C(PLCC44)
(TQFP64)
(PQFP44)
2.3
1.7
1.3
W
W
W
Ts
 Storage and Junction Temperature
-40 to 150
°C



Description

The L6238S is a Three-Phase, D.C. Brushless Spindle Motor Driver system. This device features both the Power and Sequence Sections.

Higher Power Applications can be activied with the addition of an external Linear Driver, or by operating the Internal Drivers in PWM.

Motor Start-Up, without the use of Hall Sensors, an be achieved either by an internal start-up algorithm or by manually sequencing the Output rivers, using a variety of User-Defined Start-UP Algorithms.

L6238S Protection  features include Stuck Rotor\Backward otation Detection and Automatic Thermal Shutdown
