L6237

Features: OPERATES FROM 5V SUPPLY1.5A MAXIMUM START-UP CURRENTINTEGRATED PHASES COMMUTATION SEQUENCERPROGRAMMABLESLEW RATEBACK EMF COMPARATOR OUTPUTBRAKE FUNCTION INPUT WITH USER CONFIGURABLE DELAYLOW POWER CONSUMPTION MODEOVER TEMPERATURE PROTECTIONPinoutSpecifications Symbol Parameter V...

product image

L6237 Picture
See larger image
SeekIC No. : 004389252 Detail

L6237: Features: OPERATES FROM 5V SUPPLY1.5A MAXIMUM START-UP CURRENTINTEGRATED PHASES COMMUTATION SEQUENCERPROGRAMMABLESLEW RATEBACK EMF COMPARATOR OUTPUTBRAKE FUNCTION INPUT WITH USER CONFIGURABLE DELAYL...

L6237 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L6237
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

OPERATES FROM 5V SUPPLY
1.5A MAXIMUM START-UP CURRENT
INTEGRATED PHASES COMMUTATION SEQUENCER
PROGRAMMABLESLEW RATE
BACK EMF COMPARATOR OUTPUT
BRAKE FUNCTION INPUT WITH USER CONFIGURABLE DELAY
LOW POWER CONSUMPTION MODE
OVER TEMPERATURE PROTECTION


Pinout

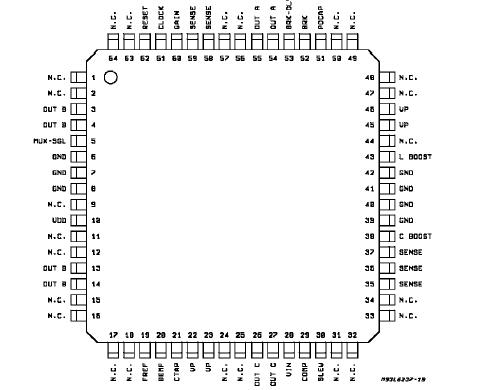

Connection Diagram


Specifications

Symbol Parameter Value Unit
VDS(sus) Output Sustaining Voltage 14 V
VP Supply Voltage 7 V
VI Logic Input Voltage Range -0.3 to VP V
VIN Transconductance Loop Input Voltage Range -0.3 to VP V
IPEAK Peak Current (Pulsed: TON = 5ms; D.C. = 10%) Tj = 25°C 2.0 A
Tjmax Maximum Junction Temperature 145 °C
Imax Maximum Current (D.C.) 1.2 A
Ptot Total Power Dissipation at Tamb = 70°C 0.85 W
Tamb Operating Ambient Temperature -0 to 70 ÉC
Tstg Storage Temperature -40 to 150 °C



Description

The L6237 is a Triple Half bridge Driver intended for use in brushless DC motor applications. The L6237 is designed to drive a Three Phase, Brushless DC Motor, Typically used in Rigid Disk Drives. Power drivers are fabricated in DMOS Technology and feature Fast Internal Recirculation Diodes. All logic inputs are CMOS/TTL compatible, and an internal TransconductanceLoop is included for linear motor speed control. Upper NChannel DMOS Transistors are driven via an Internal Step-Up Converter. The IC will be manufactured in a plastic TQFP64 surface mount package.
