L6228

PinoutSpecifications Symbol Parameter Test conditions Value Unit VS Supply Voltage VSA = VSB =VS 60 V VOD Differential Voltage betweenVSA, OUT1A, OUT2A, SENSEA andVSB, OUT1B, OUT2B, SENSEB VSA = VSB = VS =60V; VSENSEA = VSENSEB=GND 60 VV VBO...

product image

L6228 Picture
See larger image
SeekIC No. : 004389248 Detail

L6228: PinoutSpecifications Symbol Parameter Test conditions Value Unit VS Supply Voltage VSA = VSB =VS 60 V VOD Differential Voltage betweenVSA, OUT1A, OUT2A, S...

L6228 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L6228
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description

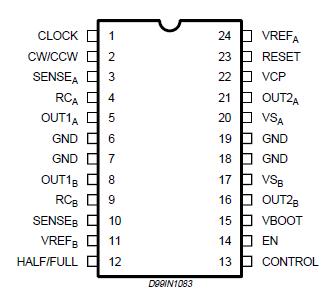

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Test conditions
Value
Unit
VS
Supply Voltage
VSA = VSB =VS
60
V
VOD
 Differential Voltage between
VSA, OUT1A, OUT2A, SENSEA and
VSB, OUT1B, OUT2B, SENSEB		 VSA = VSB = VS =60V;
VSENSEA = VSENSEB=GND
60
V
V
VBOOT
 Bootstrap Peak Voltage
VSA = VSB = VS
VS + 10
V
VIN,VEN
 Input and Enable Voltage Range
-0.3 to +7
V
VREFA,
VREFB
 Voltage Range at pins VREFA
and VREFB
-0.3 to +7
V
VRCA, VRCB
 Voltage Range at pins RCA and
RCB
-0.3 to +7
V
VSENSEA,
VSENSEB
 Voltage Range at pins SENSEA
and SENSEB
-1 to +4
V
IS(peak)
 Pulsed Supply Current (for each
VS pin), internally limited by the
overcurrent protection		 VSA = VSB = VS;
tPULSE < 1ms
3.55
A
IS
 RMS Supply Current (for each
VS pin)		 VSA = VSB = VS
1.4
A
Tstg, TOP
 Storage and Operating
Temperature Range
-40 to 150
°C



Description

The L6228 is a DMOS Fully Integrated Stepper Motor Driver with non-dissipative Overcurrent Protection, realized in MultiPower-BCD technology, which combines isolated DMOS Power Transistors with CMOS and bipolar  circuits on the same chip. The L6228 includes all the circuitry needed to drive a two-phase bipolar stepper motor including: a dual DMOS Full Bridge, the constant off time PWM Current Controller that performs the chopping regulation and the Phase Sequence Generator, that generates the stepping sequence. Available in PowerDIP24 (20+2+2), PowerSO36 and SO24 (20+2+2) packages, the L6228 features a non-dissipative overcurrent protection on the high side Power MOSFETs and thermal shutdown
