L6227

Application· STEPPER MOTOR· DUAL OR QUAD DC MOTORPinoutSpecifications Symbol Parameter Test conditions Value Unit VS Supply Voltage 60 V VIN,VEN Input and Enable Voltage Range -0.3 to +7 V VrefA,VrefB Voltage Range at Vref pins -0.3 to +7 ...

product image

L6227 Picture
See larger image
SeekIC No. : 004389247 Detail

L6227: Application· STEPPER MOTOR· DUAL OR QUAD DC MOTORPinoutSpecifications Symbol Parameter Test conditions Value Unit VS Supply Voltage 60 V VIN,VEN Input and Enab...

L6227 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L6227
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Application

· STEPPER MOTOR
· DUAL OR QUAD DC MOTOR


Pinout

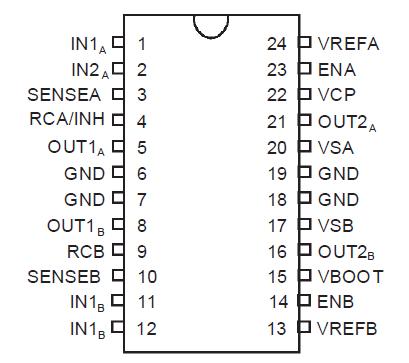

Connection Diagram


Specifications

Symbol
Parameter
 Test conditions
Value
Unit
VS
 Supply Voltage
60
V
VIN,VEN
 Input and Enable Voltage Range
-0.3 to +7
V
VrefA,VrefB
 Voltage Range at Vref pins
-0.3 to +7
V
VRCA,VRCB
 Voltage Range at RCA/INH and
RCB pins
-0.3 to +7
V
VSENSE
 DC Sensing Voltage Range
-1 to +4

VBOOT
 Bootstrap Peak Voltage
VS + 10
V
IS(peak)
 Pulsed Supply Current (for eachVS pin), internally limited by the
overcurrent protection		 tPULSE<1ms
3.55
A
IS
 DC Supply Current (for each VS
pin)
1.4
A
VOD
 Differential Voltage Between
VSA, OUT1A, OUT2A, SENSEA and
VS B, OUT1B, OUT2B, SENSEB
60
V
Tstg,TOP
Storage and Operating
Temperature Range
-40 to 150
°C



Description

The L6227 is a dual full bridge driver for motor control manufactured with Multipower BCD technology which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip.

The Logic Inputs are CMOS/TTL and mP compatible. Additional circuitry to realize a constant off time PWM control has been implemented for each bridge.

Each L6227 is controlled by a separate Enable and has a sense pin for the current sense resistor insertion. Other features are the protection of the high side switches against unsafe over current conditions, the thermal shutdown and the inhibit function that allows to disable all bridges and to reduce the quiescent current to very low values (typ. 1.1mA).

The L6227 is assembled in PowerDIP24(20+2+2), PowerSO36 and SO24(20+2+2) packages
