Product Details

Description



Pinout

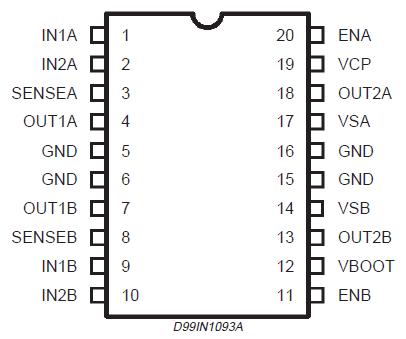

Connection Diagram


Specifications

Symbol
Parameter
 Test conditions
Value
Unit
VS
 Supply Voltage
60
V
VIN,VEN
 Input and Enable Voltage Range
-0.3 to +7
V
VSENSE
 DC Sensing Voltage Range
-1 to +4
V
VBOOT
 Bootstrap Peak Voltage
VS + 10
V
IS(peak)
 Pulsed Supply Current (for eachVS pin), internally limited by the
overcurrent protection		 tPULSE <1ms
3.55
A
IS
 DC Supply Current (for each VS
pin)
1.4
A
VOD
 Differential Voltage Between
VSA, OUT1A, OUT2A, SENSEA and
VS B, OUT1B, OUT2B, SENSEB
60
V
Tstg,TOP
Storage and Operating
Temperature Range
-40 to 150
°C



Description

The L6225 is a dual full bridge driver for motor control applications manufactured with Multipower BCD technology which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip.

The Logic Inputs are CMOS/TTL and mP compatible. The High Side switches are protected against unsafe over current conditions.

Each full bridge is controlled by a separate Enable and has a sense pin for the current sense resistor insertion. Another L6225 feature is the thermal shutdown.

The L6225 is assembled in PowerDIP20(16+2+2), PowerSO20 and SO20(16+2+2) packages.
