L6221AD

Emitter- Base Voltage VEBO :
Collector- Base Voltage VCBO :
Maximum Collector Cut-off Current :
Power Dissipation :
Transistor Polarity : NPN
Mounting Style : SMD/SMT
Packaging : Tube
Maximum Operating Temperature : + 150 C
Configuration : Quad
Collector- Emitter Voltage VCEO Max : 46 V
Maximum DC Collector Current : 1.8 A
Package / Case : SO-20


Features:

·FOUR NON INVERTING INPUTS WITH ENABLE
·OUTPUT VOLTAGE UP TO 50 V
·OUTPUT CURRENT UP TO 1.8 A
·VERYLOW SATURATION VOLTAGE
·TTLCOMPATIBLEINPUTS
·INTEGRAL FAST RECIRCULATIONDIODES

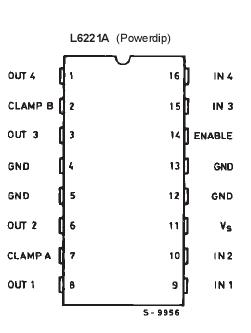

Pinout






Specifications

Symbol	Parameter	Value	Unit
Vo	Output Voltage	50	V
Vs	Logic Supply Voltage	7	V
VIN,VEN	Input Voltage, Enable Voltage	Vs
IC	Continuous Collector Current (for each channel)	1.8	A
IC	Collector Peak Current (repetitive, duty cycle = 10 % ton = 5 ms)	2.8	A
IC	Collector Peak Current (non repetitive, t = 10 s)	3.2	A
Top	Operating Temperature Range (junction)	40 to + 150	°C
Tstg	Storage Temperature Range	55 to + 150	°C
Isub	Output Substrate Current	350	mA
Ptot	Total Power Dissipation at Tpins =90 °C (powerdip) at Tcase =90 °C (multiwatt) at Tcase =90 °C (SO20) at Tamb =70 °C (powerdip) at Tamb =70 °C (multiwatt) at Tamb =70 °C (SO20)	4.3 20 3.5 1 2.3 1	W W W W W W

Description

The L6221AD monolit hicquad darling ton switchis designed for high current,high voltage switching applications.Each of the four switches is controlled by a logic input and all four are controlled by a common enable input.All inputs areTTL-compatible fo rdirect connection to logic circuits.

Each L6221AD consists of anopen-collector darling ton transisto rplusa fast diode for switching applications with inductive devicel oads.The emitters of the four switches are commoned.Any number of inputs and output sof the same device may be paralleled.

Parameters:

Technical/Catalog Information	L6221AD
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Number of Drivers/Receivers	-
Type	Darlington Array
Voltage - Supply	4.5 V ~ 5.5 V
Package / Case	20-SOIC (7.5mm Width)
Packaging	Tube
Protocol	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L6221AD L6221AD
