Product Details

Description



Application

· BIPOLAR STEPPER MOTOR
· DUAL OR QUAD DC MOTOR

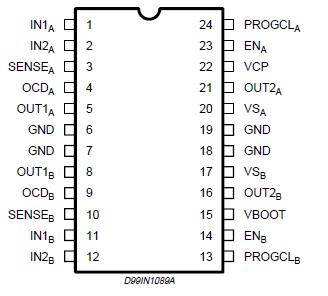

Pinout

Connection Diagram


Specifications

Symbol
 Parameter
Test conditions
Value
Unit
VS
 Supply Voltage
VSA = VSB = VS
60
V
VOD
 Differential Voltage between
VSA, OUT1A, OUT2A, SENSEA and
VSB, OUT1B, OUT2B, SENSEB
VSA = VSB = VS = 60V;
VSENSEA = VSENSEB = GND
60
V
OCDA,OCDB
 OCD pins Voltage Range
-0.3 to +10
V
PROGCLA,
PROGCLB
 PROGCL pins Voltage Range
-0.3 to +7
V
VBOOT
 Bootstrap Peak Voltage
VSA = VSB = VS
VS + 10
V
VIN,VEN
 Input and Enable Voltage Range
-0.3 to +7
V
VSENSEA,
VSENSEB
 Voltage Range at pins SENSEA
and SENSEB
-1 to +4
V
IS(peak)
 Pulsed Supply Current (for each
VS pin), internally limited by the
overcurrent protection
VSA = VSB = VS;
tPULSE < 1ms
7.1
A
IS
 RMS Supply Current (for each
VS pin)
VSA = VSB = VS
2.8
A
Tstg, TOP
 Storage and Operating
Temperature Range
-40 to 150
°C



Description

The L6206 is a DMOS Dual Full Bridge designed for otor control applications, realized in MultiPower- CD technology, which combines isolated DMOS ower Transistors with CMOS and bipolar circuits on he same chip. Available in PowerDIP24 (20+2+2), owerSO36 and SO24 (20+2+2) packages, the L6206 features thermal shutdown and a non-dissipative vercurrent detection on the high side Power OSFETs plus a diagnostic output that can be easily sed to implement the overcurrent protection.
