SeekIC No. : 004389234 Detail

L6205: Application·BIPOLAR STEPPER MOTOR·DUAL OR QUAD DC MOTORPinoutSpecifications Symbol Parameter Test conditions Value Unit VS Supply Voltage VSA = VSB = VS 60 V V...

L6205 Data Sheet

Get Latest Price

Part Number:: L6205
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

L6201 evaluate
US $3.95 - 6.02 / Piece

Motor / Motion / Ignition Controllers & Drivers DMOS Full Bridge
L6201013TR evaluate
US $3.65 - 5.39 / Piece

Motor / Motion / Ignition Controllers & Drivers DMOS Full Bridge
L6201-L6202 - L6203 evaluate
Specifications Symbol Parameter Value Unit Vs Power Supply 52 V VOD...

Product Details

Description

Application

·BIPOLAR STEPPER MOTOR
·DUAL OR QUAD DC MOTOR

Pinout

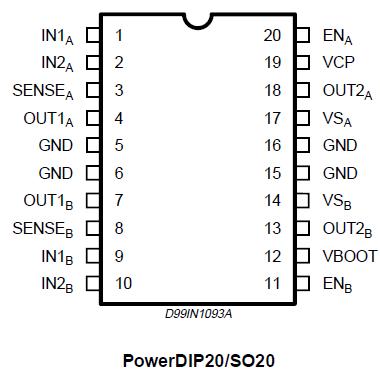

Connection Diagram

Specifications

Symbol	Parameter	Test conditions	Value	Unit
VS	Supply Voltage	V_SA = V_SB= V_S	60	V
V_OD	Differential Voltage between V_SA, OUT1_A, OUT2_A, SENSE_Aand V_SB, OUT1_B, OUT2_B, SENSE_B	V_SA = V_SB = V_S= 60V; V_SENSEA= V_SENSEB = GND	60	V
V_BOOT	Bootstrap Peak Voltage	V_SA = V_SB = V_S	V_S + 10	V
V_IN,V_EN	Input and Enable Voltage Range		-0.3 to +7	V
V_SENSEA, V_SENSEB	Voltage Range at pins SENSE_A and SENSE_B		-1 to +4	V
I_S(peak)	Pulsed Supply Current (for each V_S pin), internally limited by the overcurrent protection	V_SA = V_SB = V_S; t_PULSE < 1ms	7.1	A
I_S	RMS Supply Current (for each V_S pin)	V_SA = V_SB = V_S	2.8	A
T_stg, T_OP	Storage and Operating Temperature Range		-40 to 150	°C

Description

The L6205 is a DMOS Dual Full Bridge designed for otor control applications, realized in MultiPower- CD technology, which combines isolated DMOS ower Transistors with CMOS and bipolar circuits on he same chip. Available in PowerDIP20 (16+2+2), owerSO20 and SO20(16+2+2) packages, the L6205 features a non-dissipative protection of the igh side PowerMOSFETs and thermal shutdown.
