L4979MD

Low Dropout (LDO) Regulators 5.0 Volt 0.5 Amp

product image

L4979MD Picture
See larger image
SeekIC No. : 00518626 Detail

L4979MD: Low Dropout (LDO) Regulators 5.0 Volt 0.5 Amp

L4979MD Data Sheet

floor Price/Ceiling Price

US $ .73~1.2 / Piece | Get Latest Price
Part Number:
L4979MD
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~475
  • 475~500
  • 500~1000
  • 1000~2000
  • Unit Price
  • $1.2
  • $1.07
  • $.76
  • $.73
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Input Voltage MAX : 31 V Output Voltage : 5 V
Dropout Voltage (Max) : 400 mV Output Current : 500 mA
Load Regulation : 25 mV Number of Outputs : 1
Output Type : Fixed Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT Package / Case : SO-20

Description

Number of Outputs : 1
Mounting Style : SMD/SMT
Output Voltage : 5 V
Output Type : Fixed
Maximum Operating Temperature : + 150 C
Output Current : 500 mA
Load Regulation : 25 mV
Dropout Voltage (Max) : 400 mV
Package / Case : SO-20
Input Voltage MAX : 31 V


Features:

` OPERATING DC SUPPLY VOLTAGE RANGE 5.6V TO 31V
` LOW QUIESCENT CURRENT (6A Typ. @ 25°C with Enable Low)
` HIGH PRECISION OUTPUT VOLTAGE (2%)
` LOW DROPOUT VOLTAGE LESS THAN 0.5V
` RESET CIRCUIT SENSING THE OUTPUT VOLTAGE DOWN TO 1V
` PROGRAMMABLE RESET PULSE DELAY WITH EXTERNAL CAPACITOR
` WATCHDOG
` PROGRAMMABLE WATCHDOG TIMER WITH EXTERNAL CAPACITOR
` THERMAL SHUTDOWN AND SHORT CIRCUIT PROTECTION
` AUTOMOTIVE TEMPERATURE RANGE (Tj = -40°C TO 150°C)
` ENABLE INPUT FOR ENABLING/DISABLING THE VOLTAGE REGULATOR OUTPUT


Pinout

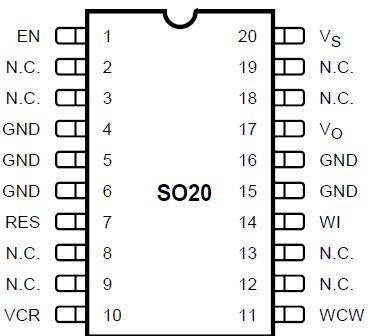

Connection Diagram




Specifications

Symbol
Parameter
Value
Unit
Vvsdc
 DC supply voltage
-0.3to40
V
Ivsdc
 Input current
internally limited
Vvo
 DC output voltage
-0.3to6
V
Ivo
 DC output current
internally limited
Vwi
 Watchdog input voltage
-0.3 to Vvo +0.3
V
Vod
 Open drain output voltage (RES)
-0.3 to Vvo +0.3
V
Iod
 Open drain output current (RES)
internally limited
Vcr
 Reset delay voltage
-0.3 to Vvo +0.3
V
Vcw
 Watchdog delay voltage
-0.3 to Vvo +0.3
V
Ven
 Enable input voltage
-0.3to40
V
Tj
 Junction temperature
-40to150
°C
VESD
 ESD voltage level (HBM-MIL STD 883C)
±2
KV
Note: 1. Maximum ratings are absolute ratings; exceeding any one of these values may cause permanent damage to the integrated circuit.


Parameters:

Technical/Catalog InformationL4979MD
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
TypeStep-Down (Buck)
Number of Outputs1
Voltage - Input5.6 ~ 31 V
Voltage - Output5V
Current - Output150mA
Power - Output-
Package / Case20-SOIC (7.5mm Width)
PackagingTube
Internal Switch(s)Yes
SynchronousNo
Rds (On)-
Operating Temperature-40°C ~ 150°C
Frequency - Switching-
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names L4979MD
L4979MD
