L4959

Polarity : Positive
Mounting Style : Through Hole
Input Voltage MAX : 35 V
Line Regulation : 50 mV
Load Regulation : 150 mV
Maximum Operating Temperature : + 70 C
Output Type : Selectable
Output Voltage : 5.6 V, 8.6 V, 12 V
Output Current : 650 mA
Package / Case : Multiwatt-11

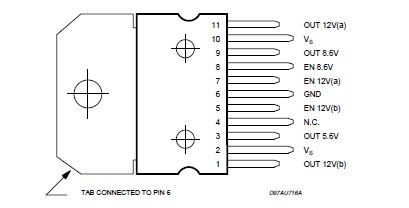

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	DC Supply Voltage	35	V
IO	Output Current	internally limited
Top	Operating Temperature Range	0 to +70	°C
Tstg	Storage Temperature	40 to 150	°C

Description

The L4959 is a monolithic Multifunction Voltage Regulator, designed mainly for supplying Home Audio systems. The L4959 contains one unswitched linear 5.6V regulator for Micro, two switched regulators 8.6V and 12V, suitable to feed CD or CD players and LED, Signal Process. An additional 12V regulator for Solenoid Motor an CD_TRAY Driven is also available.

Parameters:

Technical/Catalog Information	L4959
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	Multiwatt-11 (Vertical, Bent and Staggered Leads)
Packaging	Tube
Type	Audio Voltage Regulator
Voltage - Input	15 ~ 30 V
Voltage - Output	5.6V, 8.6V, 12V
Number of Outputs	4
Applications	Converter, Home Audio System
Operating Temperature	0°C ~ 70°C
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L4959 L4959
