L4954

PinoutSpecifications Symbol Parameter Value Unit VS DC Operating Supply Voltage -0.6 to 26.5 V VS Transient Supply Overvoltages, rise time = 10ms delay time = 115ms 34 V VS,ovs Overvoltage Shutdown 27 V Vin Input Voltages (EN1, EN2, EN3) ...

product image

L4954 Picture
See larger image
SeekIC No. : 004389165 Detail

L4954: PinoutSpecifications Symbol Parameter Value Unit VS DC Operating Supply Voltage -0.6 to 26.5 V VS Transient Supply Overvoltages, rise time = 10ms delay time = 115ms...

L4954 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L4954
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

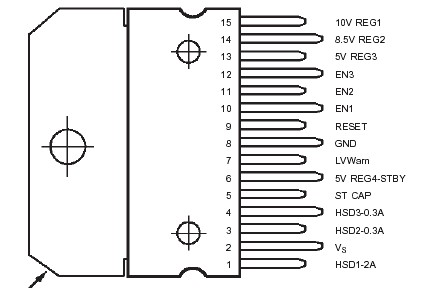

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit

VS

 DC Operating Supply Voltage

-0.6 to 26.5

V

VS

 Transient Supply Overvoltages, rise time = 10ms
  delay time = 115ms

34

V

VS,ovs
 Overvoltage Shutdown
27
V
Vin
 Input Voltages (EN1, EN2, EN3)
-0.6 to 6.0
V
Vout
 Output Voltages (LVWarn, RESET)
-0.6 to 6.0
V
Top
 Operating Temperature Range
40 to 85
°C
Tstg
 Storage Temperature
55 to 150
°C



Description

L4954 is a quad output voltage regulator and a three output high side driver.

The IC  L4954 includes monitoring circuitry to warn the microprocessor of a low voltage condition: the LVWarn, output, sensing the slow dropping of STCAP pins voltage, gives the microprocessor time to store data.

A RESET output is generatedat REG4's decay.External protection must be provided for reverse battery protection.
