L4937N: Linear Regulators - Standard Dual 5V Very LDO

L4937N Data Sheet

Get Latest Price

Part Number:: L4937N
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

L4931 evaluate
Features: VERY LOW DROPOUT VOLTAGE (0.4V)VERY LOW QUIESCENT CURRENT (TYP. 50 µA IN OFF MODE,...
L4931ABD120 evaluate
Low Dropout (LDO) Regulators 12V 0.25A Positive
L4931ABD120TR evaluate
US $.34 - .56 / Piece

Low Dropout (LDO) Regulators 12V 0.25A Positive

Product Details

Quick Details

Output Type :	Adjustable, Fixed	Polarity :	Positive
Output Voltage :	5 V	Output Current :	500 mA
Load Regulation :	50 mV	Input Voltage MAX :	25 V
Line Regulation :	20 mV	Maximum Operating Temperature :	+ 150 C
Mounting Style :	Through Hole	Package / Case :	HEPTAWATT

Description

Polarity : Positive
Output Voltage : 5 V
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
Input Voltage MAX : 25 V
Load Regulation : 50 mV
Line Regulation : 20 mV
Output Type : Adjustable, Fixed
Output Current : 500 mA
Package / Case : HEPTAWATT

Pinout

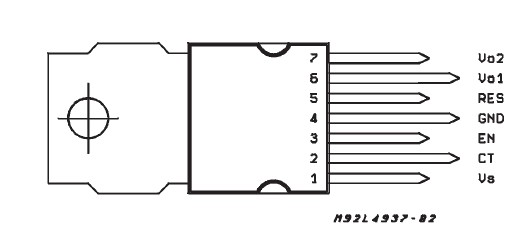

Connection Diagram

Specifications

Symbol	Parameter	Value	Value Unit
VS	DC Supply Voltage	28	V
VS	Transient Supply Voltage (T < 1s)	40	V
T_j, T_stg	Junction and Storage Temperature Range	55 to 150	°C
I_SI	Sense Input Current (VSI 30.3V or VSI > VS)	±1	mA
I_EN	Enable Input Current (VEN 30.3V)	-1	mA
V_EN	Enable Input Voltage	V_S
V_RES, VSO	Reset and Sense Output Voltage	20	V
IRES	Reset and Sense Output Current	5	mA
P_D	Power Dissipation (TA = 80°C, Rth heatsink = 9°C/W)	5	W

Description

The L4937Nis a monolithic integrated dual voltage

Regulatorswithtwoverylowdropoutoutputsandadditional functionssuch as power-on reset and input voltage sense. L4937N is designed for supplying microcomputer controlled systems specially in automotive applications.

Parameters:

Technical/Catalog Information	L4937N
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Regulator Type	Multiple Output
Package / Case	Heptawatt-7 (Vertical, Bent and Staggered Leads)
Packaging	Tube
Regulator Topology	Positive Fixed
Current - Output	50mA, 500mA
Voltage - Output	5V
Operating Temperature	-40°C ~ 125°C
Voltage - Input	6 ~ 25 V
Number of Regulators	2
Current - Limit (Min)	-
Current Short Circuit (Isc)	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L4937N L4937N
